Fire System Integration: Engineering Part B Compliance



Fire System Integration: Engineering Part B Compliance

To meet UK Building Regulations Approved Document B (Part B), a fire shutter cannot operate in isolation. It must function as an integrated component of the building’s overall life safety and fire management strategy.

For architects, specifiers, and facilities managers, understanding exactly how our fire shutters communicate with the primary Fire Alarm Control Panel (FACP) is critical for ensuring a compliant, fully functional fire compartmentation system. Below is a technical breakdown of how our fire shutters interface with your building's existing infrastructure.

The Main Fire Alarm Interface and Relay Switches
The core connection between the building’s FACP and the fire shutter is managed via a fire relay, typically utilizing a volt-free (dry) contact.

• Continuous Monitoring: The shutter’s control panel operates on a 'Normally Closed' (NC) circuit. The building's fire alarm system continuously provides a signal (often 24V DC) to hold the relay closed.
• Trigger Protocol: In the event of a fire detection, the FACP drops the signal to the shutter's relay. Breaking this circuit immediately initiates the shutter’s automated descent sequence.
• Zonal Activation: For large commercial premises, shutters can be mapped to specific fire zones on an addressable fire alarm panel. This ensures that only the shutters in the affected fire compartments are deployed, aiding in safe evacuation while restricting fire spread.

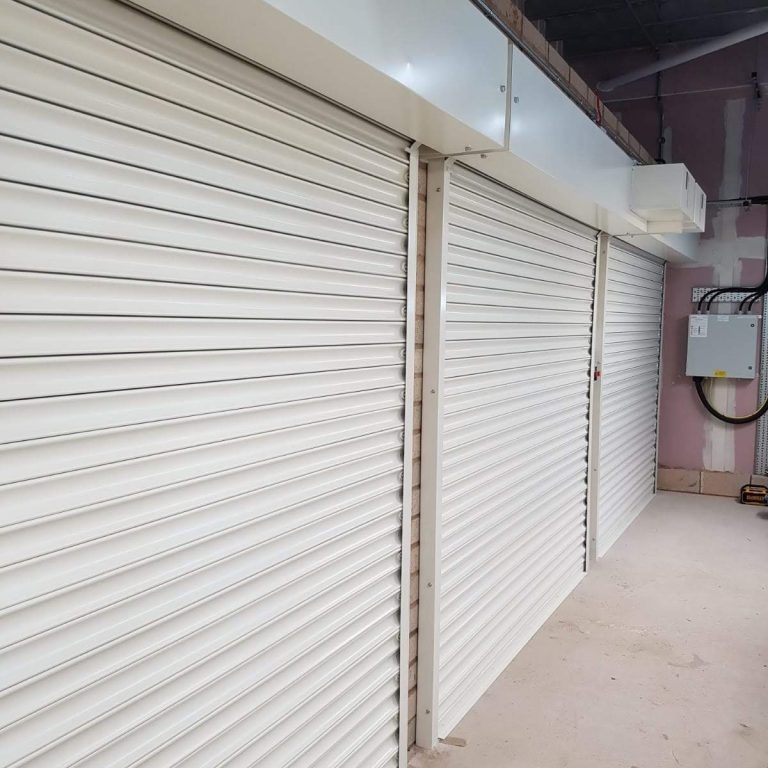

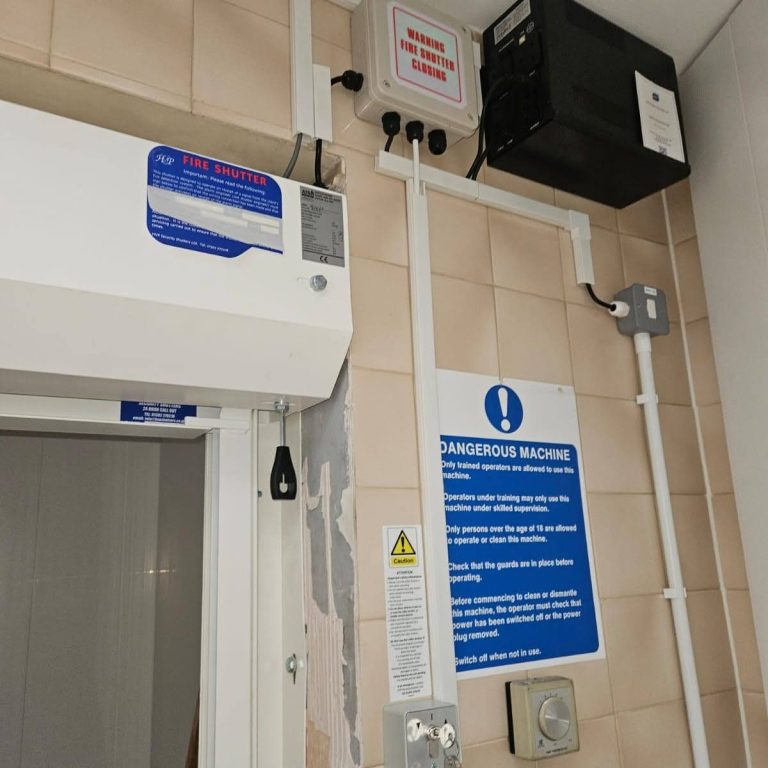

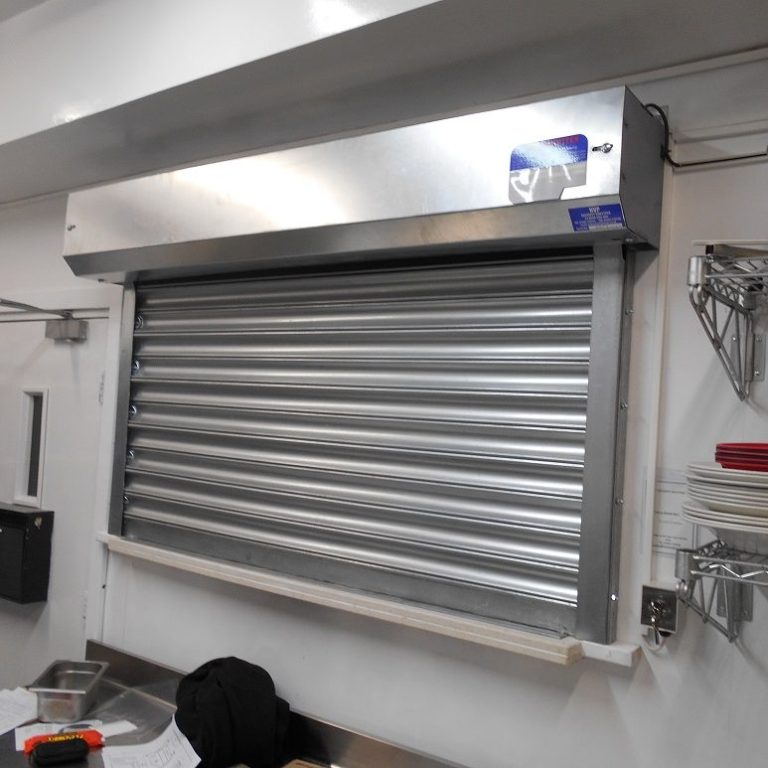

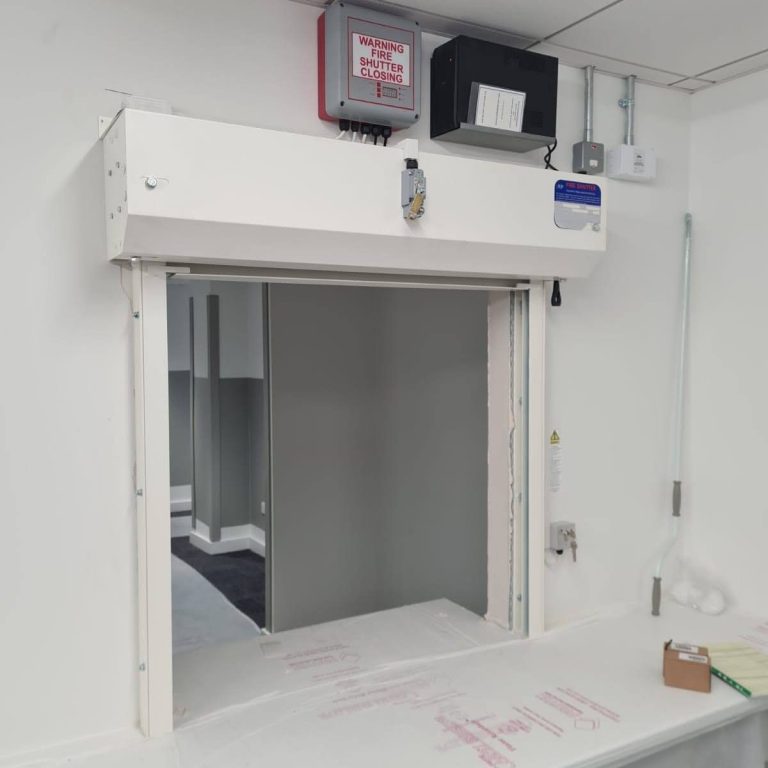

Audio-Visual Warning Panels
A closing fire shutter presents a physical hazard, particularly in high-traffic corridors, retail spaces, or commercial egress routes. To ensure occupant safety and regulatory compliance, the system utilizes integrated Audio-Visual (AV) warning panels.

• Pre-Deployment Warning: Upon receiving the drop signal from the FACP, the shutter control panel instantly activates localized flashing beacons and high-decibel sounders.
• Time Delay Mechanisms: The AV warning operates for a programmable duration (typically 10 to 30 seconds) before the shutter begins its physical descent. This vital delay alerts occupants to clear the threshold immediately.
• Voice Annunciation: For larger public buildings or schools, standard siren sounders can be upgraded to broadcast clear, pre-recorded verbal warnings to expedite safe clearance of the area.

Fail-Safe Descent via Soldered Fusible Link
True Part B compliance requires the shutter to deploy reliably even under catastrophic conditions, such as a total mains power failure where the primary fire alarm signal is lost or compromised.

• Heat-Activated Mechanical Release: The ultimate mechanical fail-safe relies on a localized, heat-sensitive soldered fusible link connected directly to the motor's braking mechanism.
• Thermal Activation (Typically 68°C): The link consists of two metal components joined by a precisely calibrated solder alloy. If the ambient temperature near the shutter reaches the critical activation threshold (usually 68°C), the solder melts and the link separates.
• Controlled Gravity Drop: The separation of the fusible link mechanically disengages the motor brake without requiring any electrical power. The shutter then automatically descends to close the fire compartment.
• Regulated Descent Speed: This gravity drop is strictly regulated by a mechanical centrifugal brake within the motor assembly. This ensures the heavy steel curtain descends at a safe, controlled speed (typically between 0.15m and 0.2m per second) rather than going into a dangerous free-fall.

For project-specific technical specifications, wiring diagrams, or consultation on your required fire safety strategy, contact our technical team directly. We provide full specification support for commercial fit-outs and comprehensive Part B compliance reviews.
