Roller Shutter Installation: Why the Fit is Often More Important Than the Shutter Itself


When specifying a commercial or industrial roller shutter, it is easy to get caught up in the cosmetic and technical details. Clients and architects often spend weeks agonizing over the perfect RAL powder-coated finish, comparing lath profiles, and reviewing motor specifications on datasheets.

While specifying the right product is essential, there is a hard operational truth that rarely gets discussed: the most expensive, highly rated roller shutter on the market will fail prematurely if it is poorly installed.

A roller shutter is a heavy, dynamic piece of machinery. How it is supported, fixed, and aligned in the opening dictates how well it will perform and how long it will last. Here is why the installation process is the true determining factor in the lifespan of your security shutter.

The Illusion of the Specification Sheet

Choosing the shutter is only a small fraction of the project. You can procure a premium, heavy-duty insulated shutter, but if it is fitted to an inadequate substrate or installed out of level, its operational life will be drastically cut short.

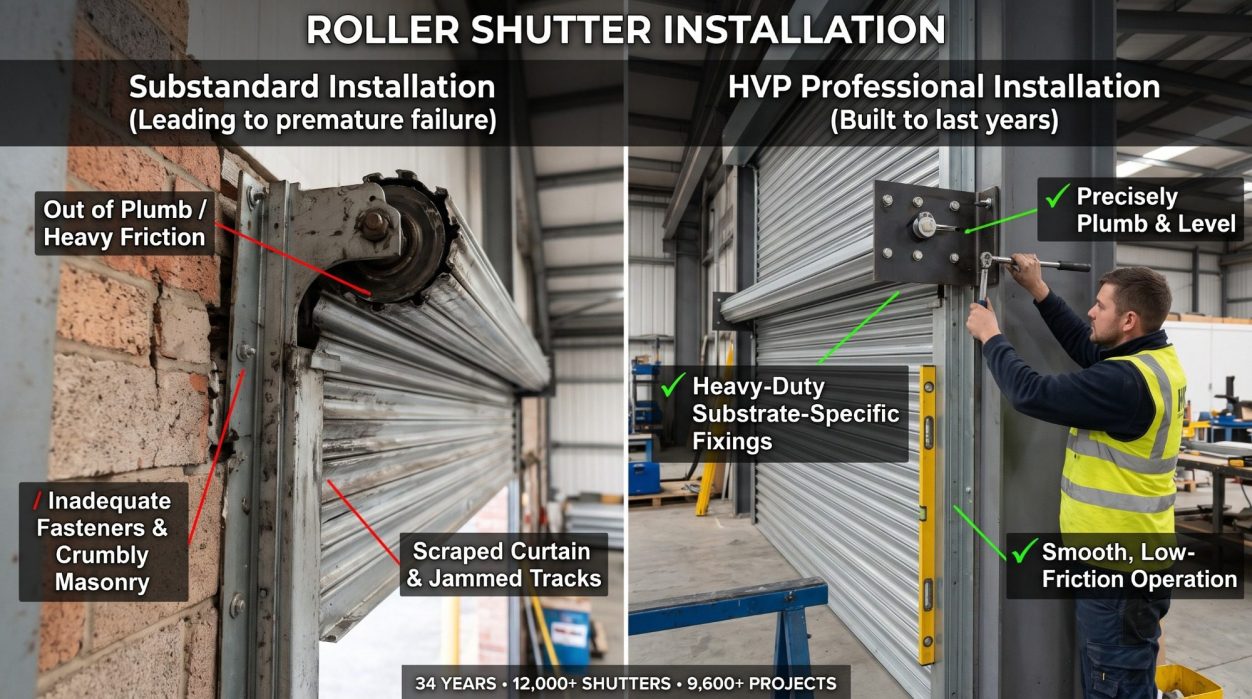

Poor installation leads to a cascading series of mechanical failures:

• Motor Burnout: Guide rails that are not perfectly plumb create friction, forcing the motor to work harder than its designated duty cycle, leading to premature electrical failure.
• Curtain Damage: Misaligned tracks cause the metal curtain to grind and scrape against the guides, destroying the powder-coated finish and causing the laths to warp or jam.
• Structural Risks: A shutter exerts a dynamic, torsional load when operating. If a heavy commercial shutter is fixed using standard plastic plugs instead of chemical resin or heavy-duty mechanical anchors, the torque of the motor can eventually pull the entire assembly out of the masonry.

What Actually Makes a Roller Shutter Last?

To ensure a shutter operates flawlessly for years—long after the initial warranty expires—the installation team must execute on four critical fronts:

• Structural Support and Load Distribution: The dead weight of the barrel and the operational torque must be evenly distributed. This means assessing the structural integrity of the steel, brick, or blockwork and ensuring the opening can handle the dynamic load.
• Substrate-Specific Fixings: There is no universal fixing method. Securing a shutter to 6mm structural steel requires different hardware than fixing into hollow Thermalite blockwork. Using the exact right heavy-duty fixings prevents the endplates and guides from shifting under daily use.
• Precision Alignment: The barrel must be perfectly level, and the guide rails must be plumb and parallel. Even a margin of error of a few millimeters can cause the curtain to snag, putting immense strain on the internal moving parts.
• Accurate Commissioning and Setup: Setting the motor limits correctly ensures the shutter stops exactly where it should, preventing over-travel that can rip the curtain from the barrel or crush the bottom rail into the floor.

34 Years, 12,000 Shutters, 9,600 Projects

At HVP Security Shutters, we take a pragmatic, no-nonsense approach to physical security. We do not just supply doors; we engineer practical, long-term solutions for our clients.

With 34 years of hands-on industry experience, we have successfully installed over 12,000 security shutters across more than 9,600 commercial projects nationwide. We have seen firsthand what happens when corners are cut on site, and we know exactly what it takes to fit a shutter correctly the first time.

Because we manage both the specification and the installation, there is no disconnect between what works on paper and what works on the building site. We ensure that the structural fixings, the load-bearing calculations, and the final commissioning are executed with exact precision.

If you are planning a project and want the peace of mind that comes from decades of proven operational experience, our team is ready to help you specify the right shutter—and, more importantly, install it properly.
