CL70 PVC Grille: Lightweight Security Shutter for Bars, Counters, and Receptions

The CL70 PVC Grille is a tube and link security roller grille, expertly engineered for environments where both security and transparency are essential. Constructed from strong PVC moulded links connected through aluminium rods, the CL70 creates an attractive pattern that’s both functional and stylish. The open design allows clear views of your premises or displays while forming a physical barrier to deter theft and unauthorised access.

Key Features of the CL70 PVC Grille

• Maximum Visibility: The unique open pattern ensures your bar, servery, or reception area remains visible, even when secured.
• Enhanced Security: Durable PVC links and aluminium rods provide effective protection against intrusion.
• Lightweight Construction: Easy manual operation—ideal for frequent daily use.
• Compact Roll-Up: The grille rolls into a small coil, enabling discreet installation in bulkheads or above suspended ceilings.
• Economic Solution: Cost-effective security for commercial and hospitality environments.
• Attractive Aesthetics: The stylish pattern complements modern interiors and enhances the look of your premises.
• Custom Sizing: Manufactured to suit your exact opening dimensions for a seamless finish.
• Manual or Electric Options: Choose between manual push-up/pull-down or electric operation with tubular motor and manual override.

Where Can the CL70 PVC Grille Be Used?

The CL70 is a popular choice for a variety of commercial and hospitality settings, including:

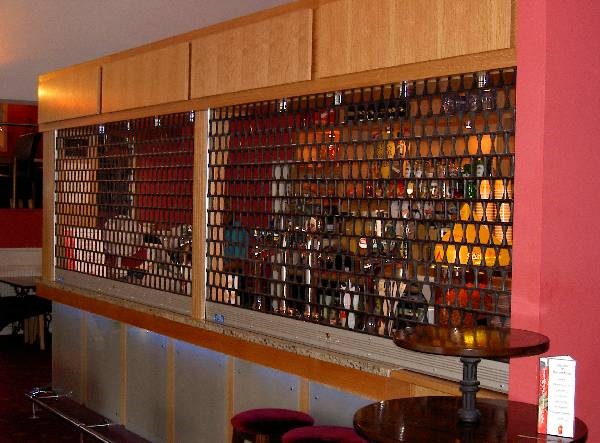

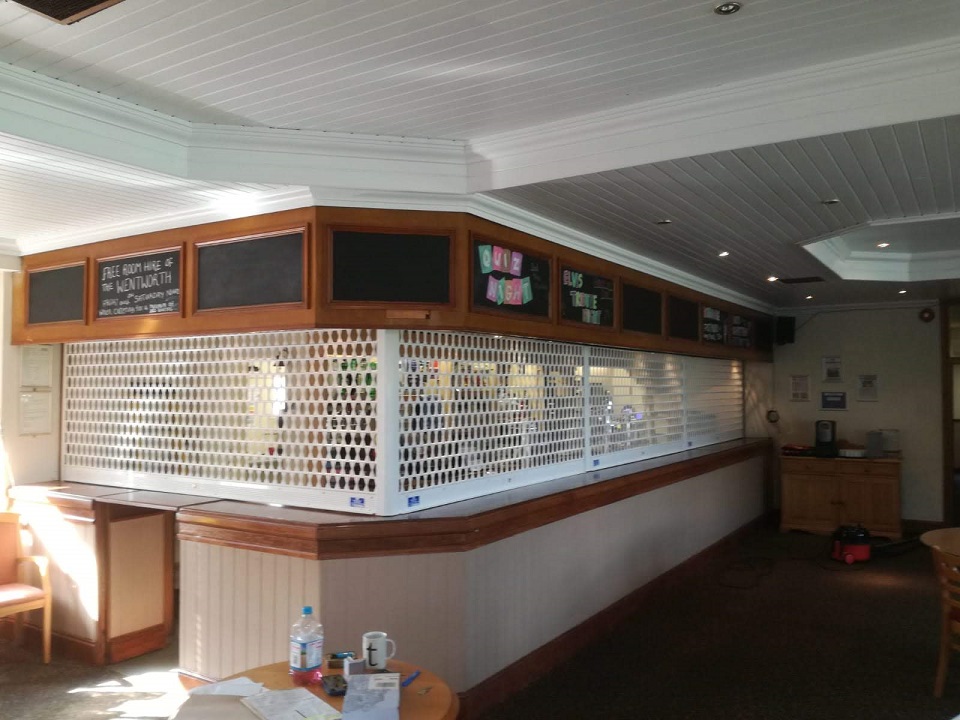

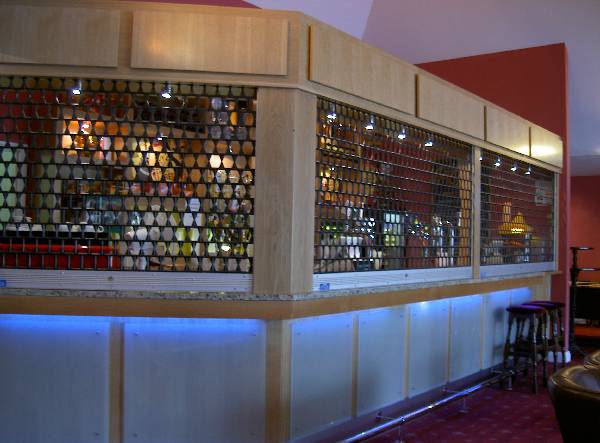

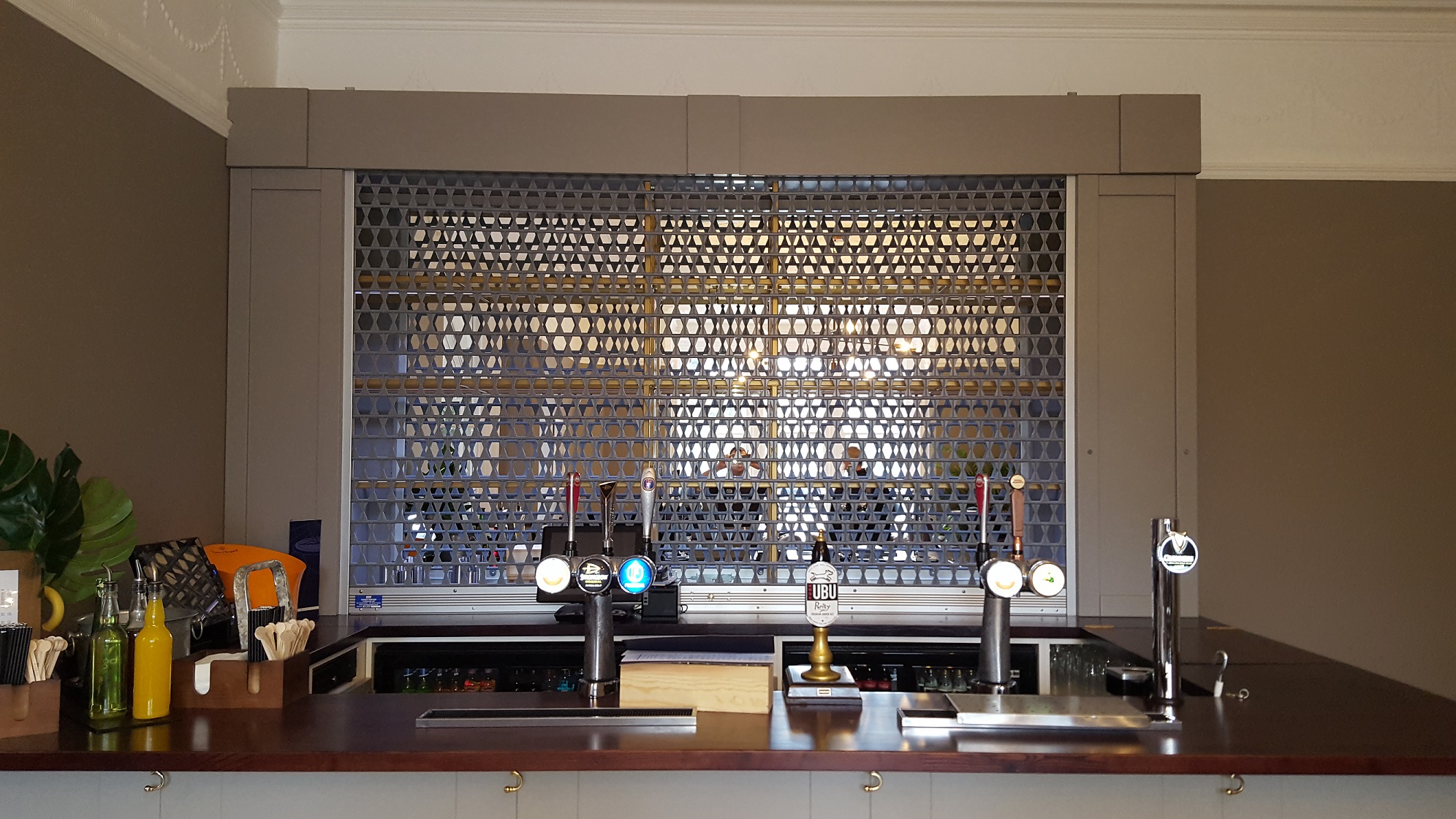

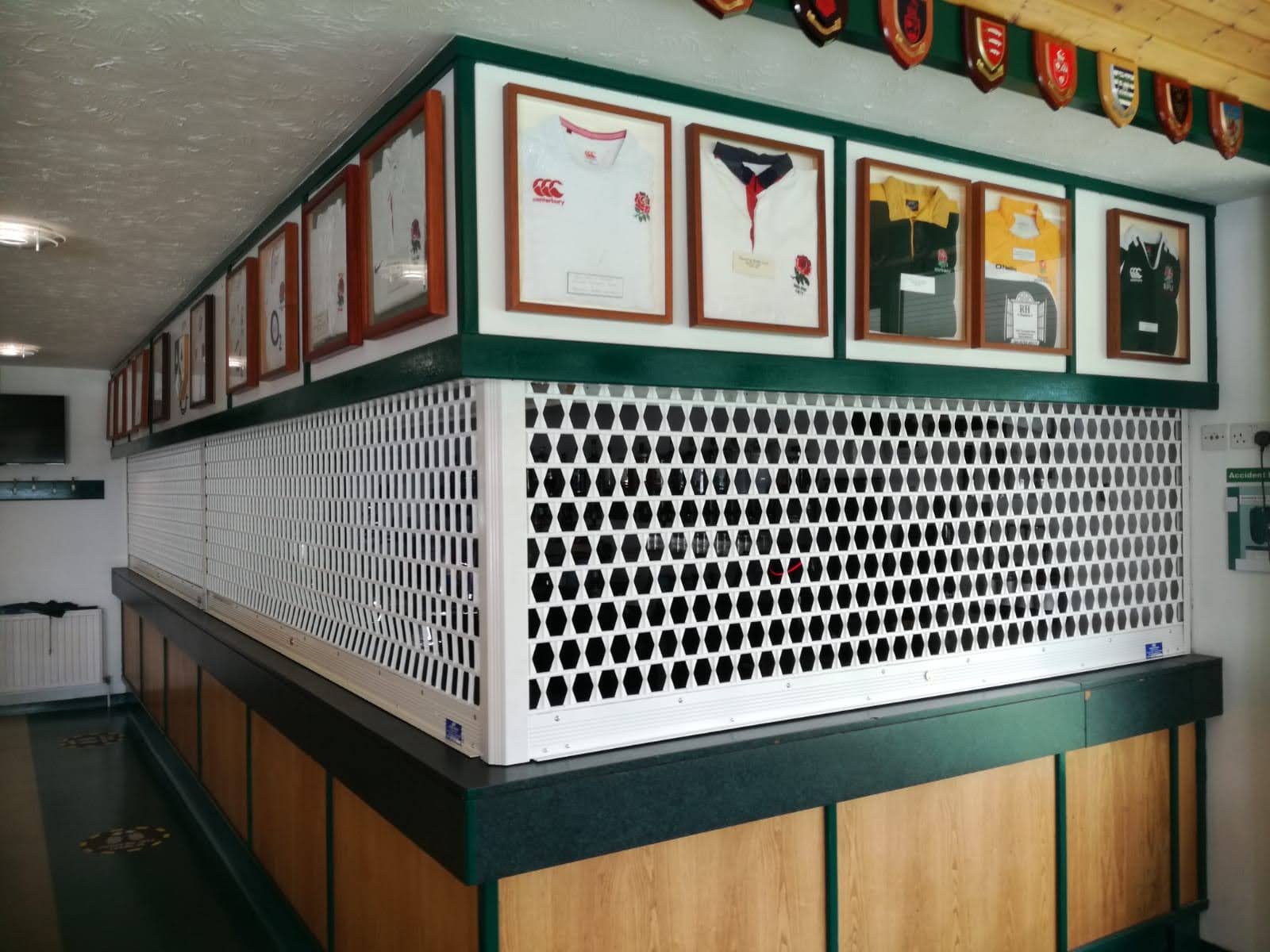

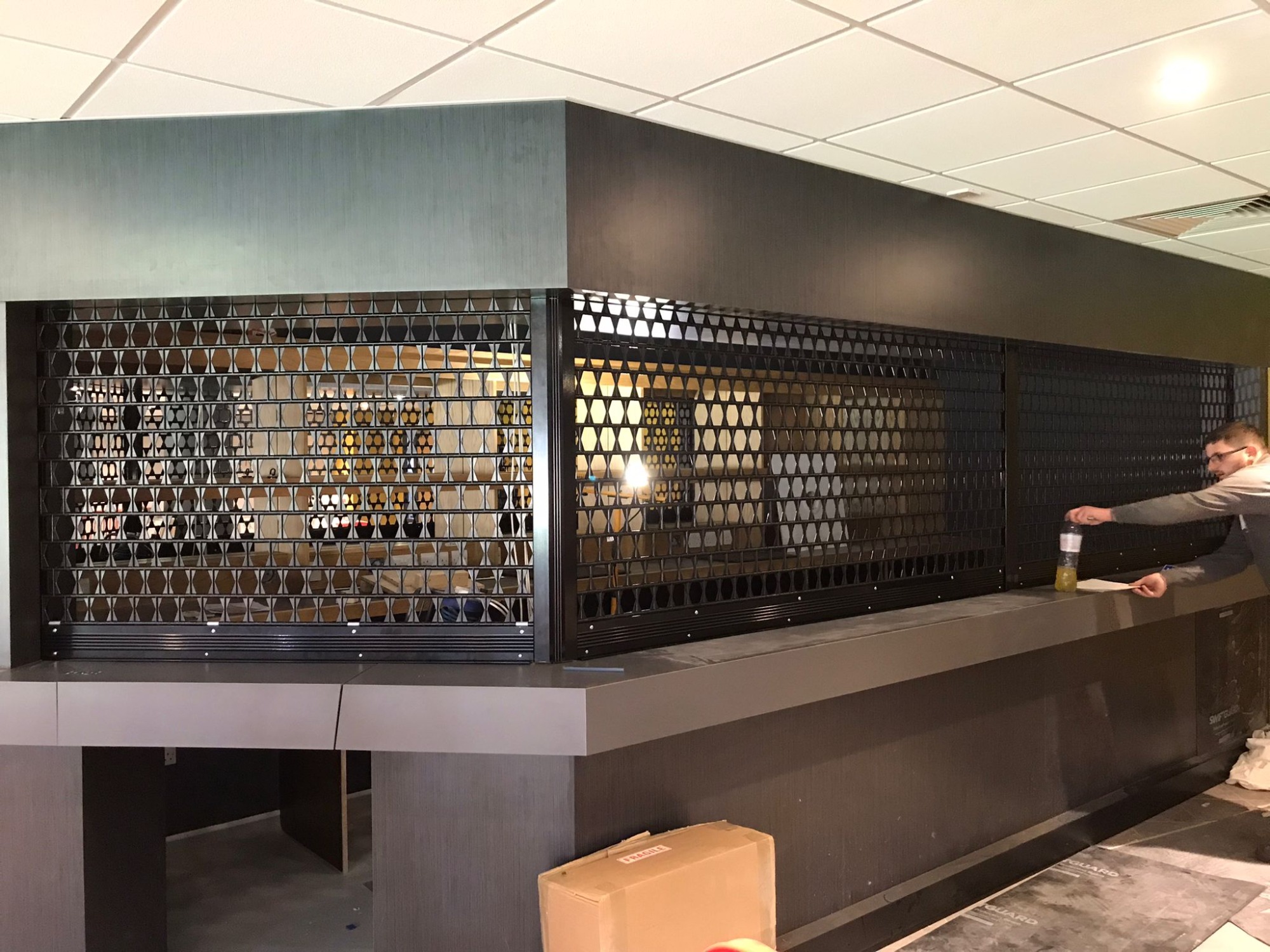

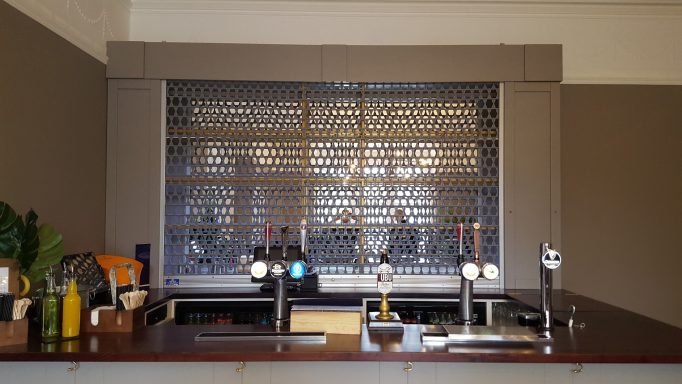

Bars & Pubs

• Secure Bar Areas: Lock down your bar after hours without hiding your interior design or product displays.
• Quick Operation: Lightweight for easy daily opening and closing.

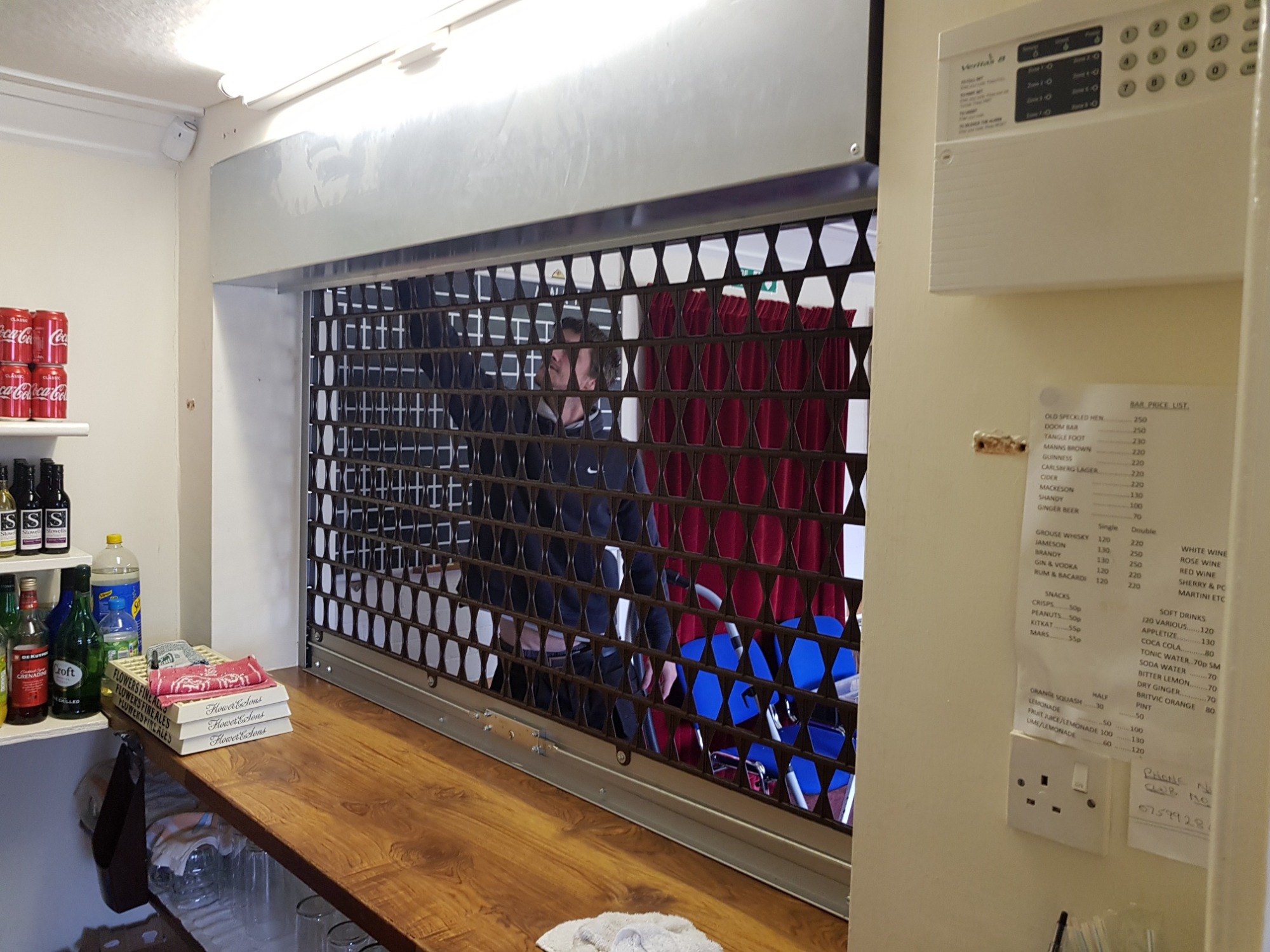

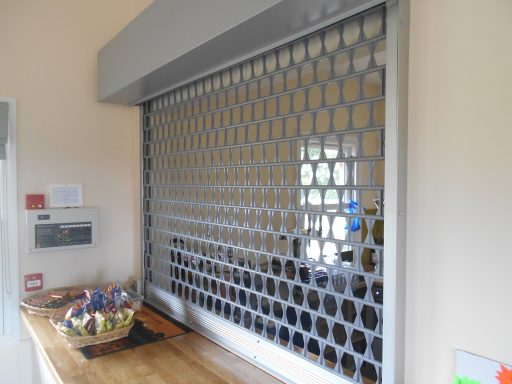

Serveries & Food Counters

• Food Courts & Cafés: Secure food service areas in shopping centres, leisure venues, and canteens.
• Complies with Hygiene & Safety: Open pattern allows airflow and visibility, supporting compliance in food environments.

Reception Counters

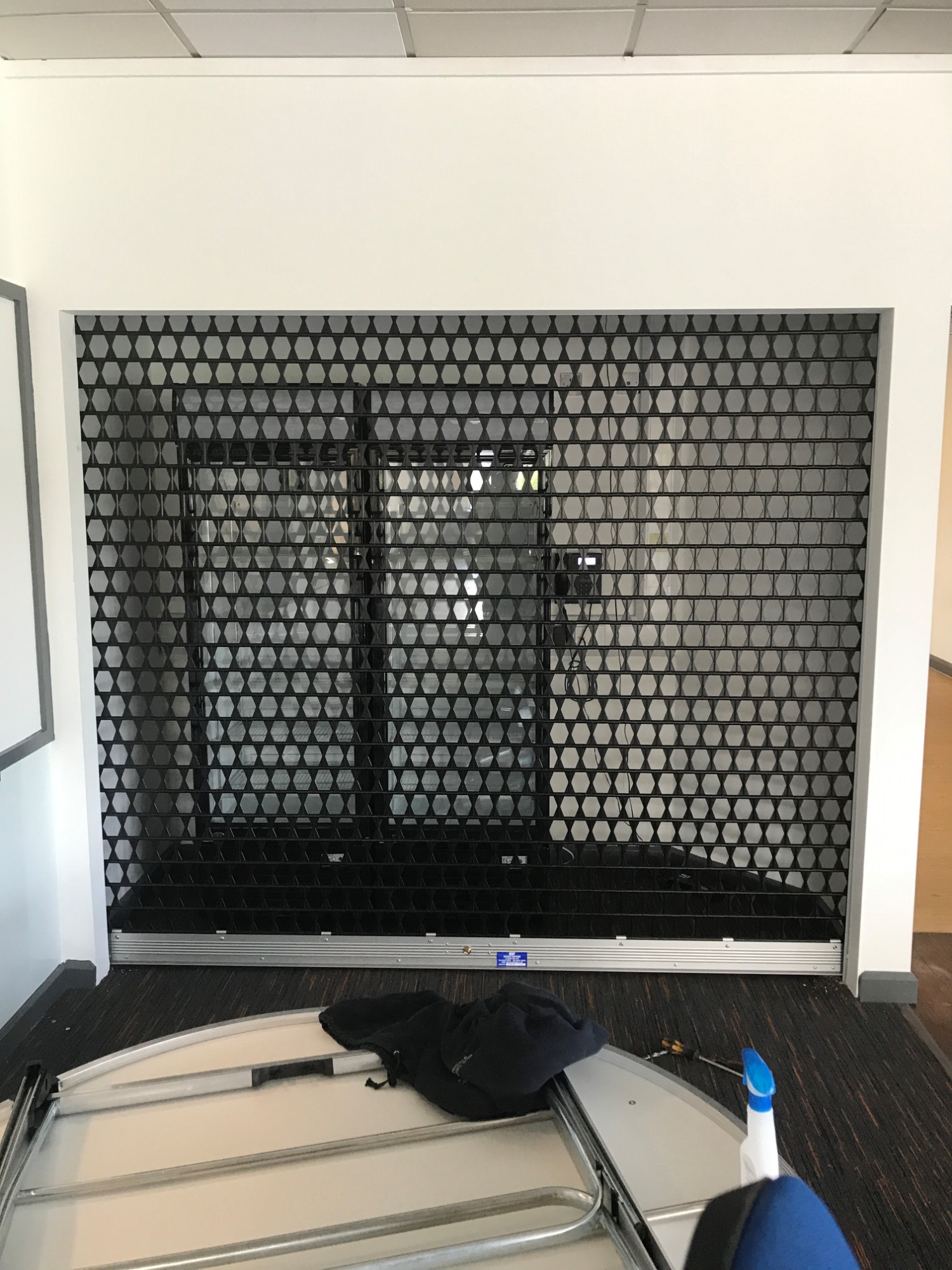

• Hotels, Offices, Public Buildings: Protect reception desks and service counters while maintaining a welcoming, open feel.
• Ideal for After-Hours Security: Prevents unauthorised access when staff are not present.

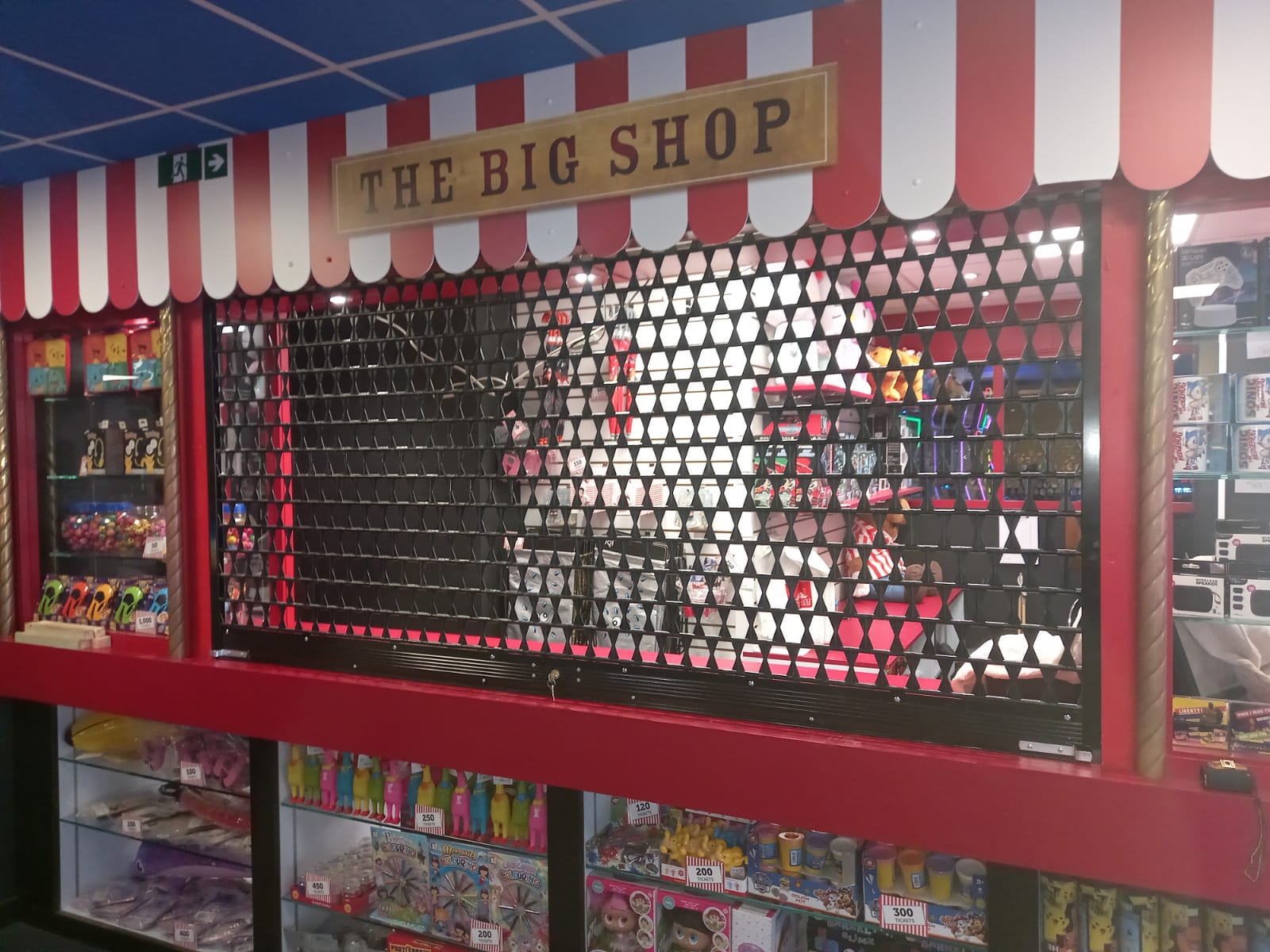

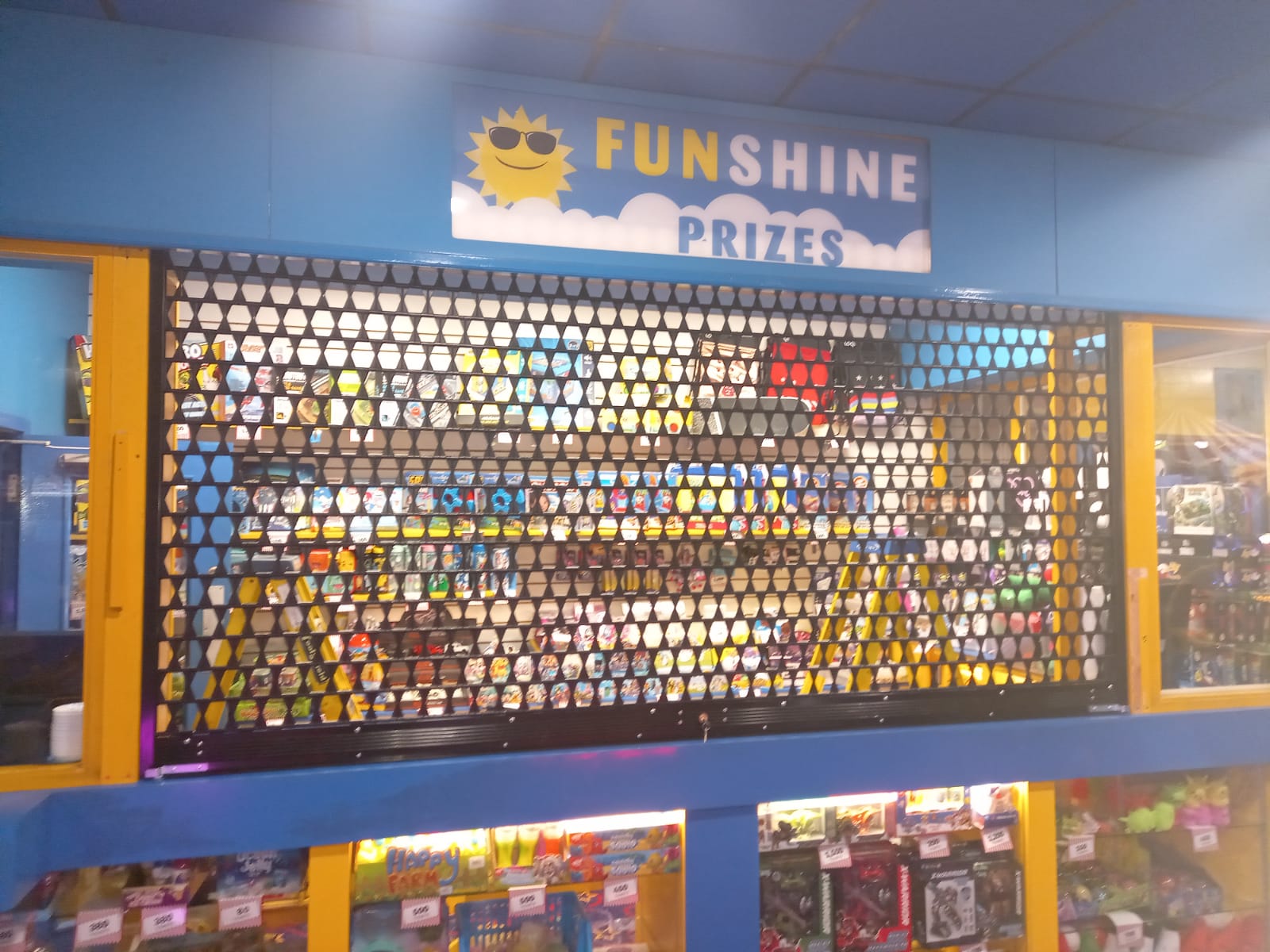

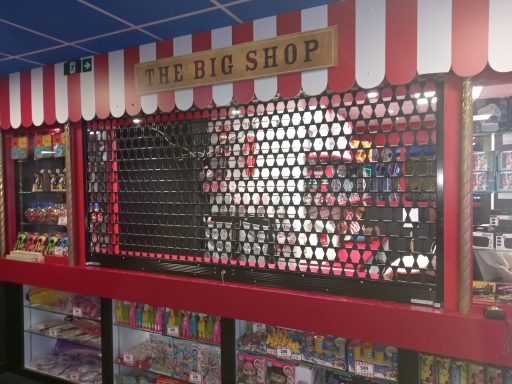

Retail & Display Areas

• Showcase Merchandise: Keep products visible and attract customers, even when closed.
• Deters Theft: Acts as a visible deterrent to opportunistic theft.

Technical Specifications

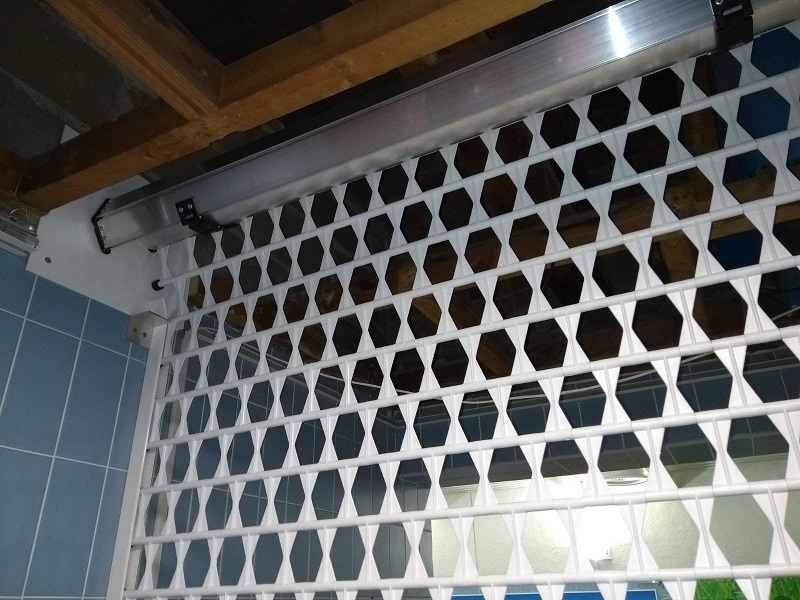

• Construction: Strong PVC moulded links joined by aluminium rods
• Bottom Rail: Aluminium T-shaped bottom rail
• Guides: Aluminium guides (35–65mm x 27–36mm)
• Pattern: Attractive open-link design with spaces large enough to display merchandise, but small enough to prevent tampering
• Operation: Manual push up/pull down or electric operation (tubular motor with manual override)
• Locking: Bottom rail central key lock or guide pin locks; electric models are generally self-locking
• Finish: Standard colours—Brown, White, Black, Red, Grey (other colours on request)
• Maximum Size: Up to 3000mm wide x 3000mm high (larger openings possible with centre posts)
• Box Size: Varies by opening height (e.g., 1100mm opening = 230mm box; 1350mm = 250mm box; 2400mm = 305mm box)
• Compliance: Safety brake fitted as standard to meet BS EN 13241:2003-1

Why Choose HVP Security Shutters for Your CL70 PVC Grille?

• Over 34 Years’ Experience: Trusted experts in security shutter solutions for commercial and hospitality sectors.
• In-House Manufacturing: Quality control and bespoke solutions from our Exeter-based workshop.
• Nationwide Service: Installation teams across the South West and UK, with international supply-only options.
• Certified & Accredited: ISO 9001:2015, Constructionline Gold, DHF member.
• Comprehensive Support: Free site surveys, technical drawings, specification texts, and 24/7 emergency repairs.

Typical Projects Using CL70 PVC Grilles

• Bars and nightclubs
• Hotel and office reception desks
• Food courts, cafés, and canteens
• Retail kiosks and display counters
• Public building service counters
