Viewguard Perforated Steel Roller Shutters: Secure, Versatile, and Transparent Protection

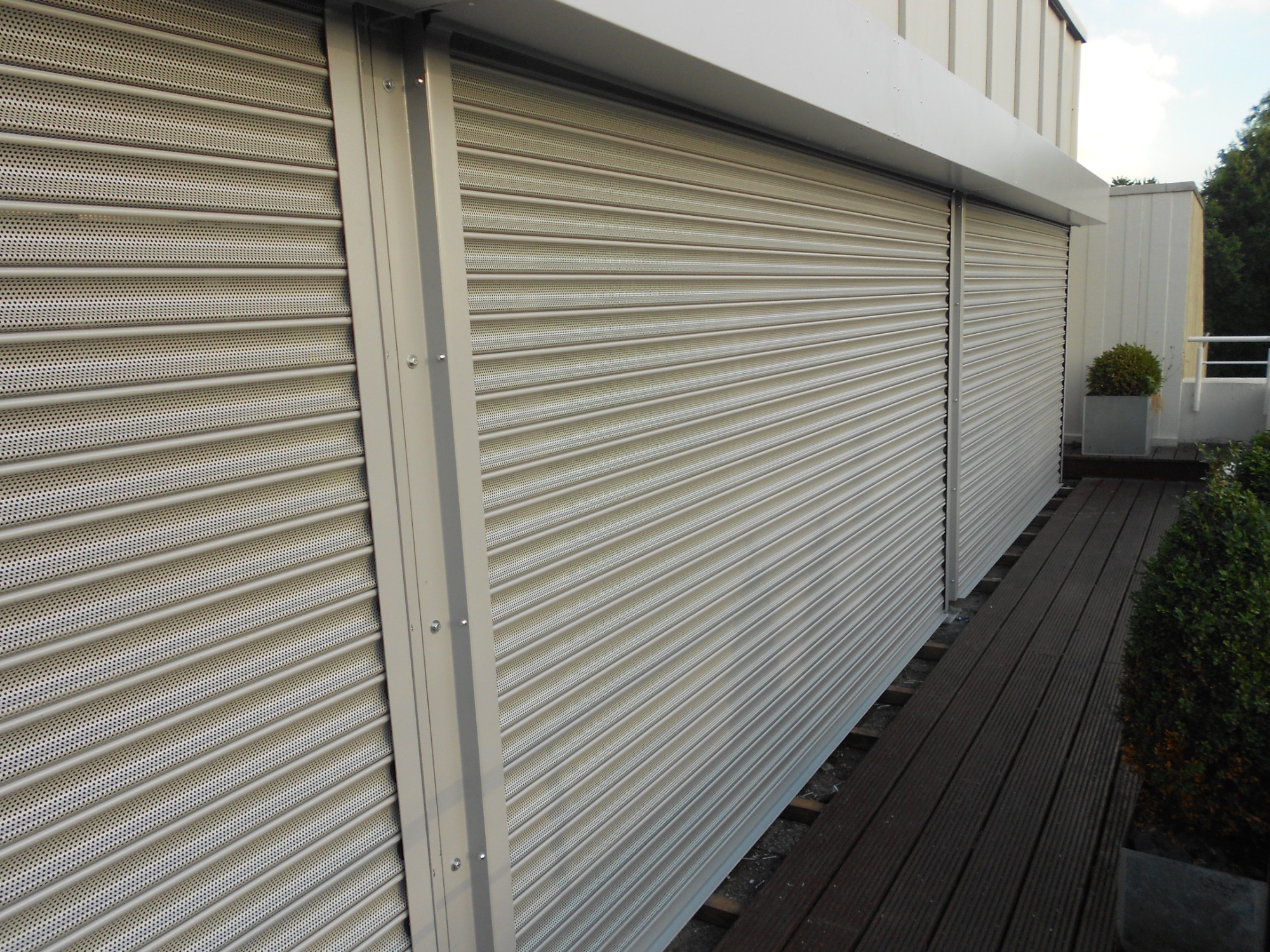

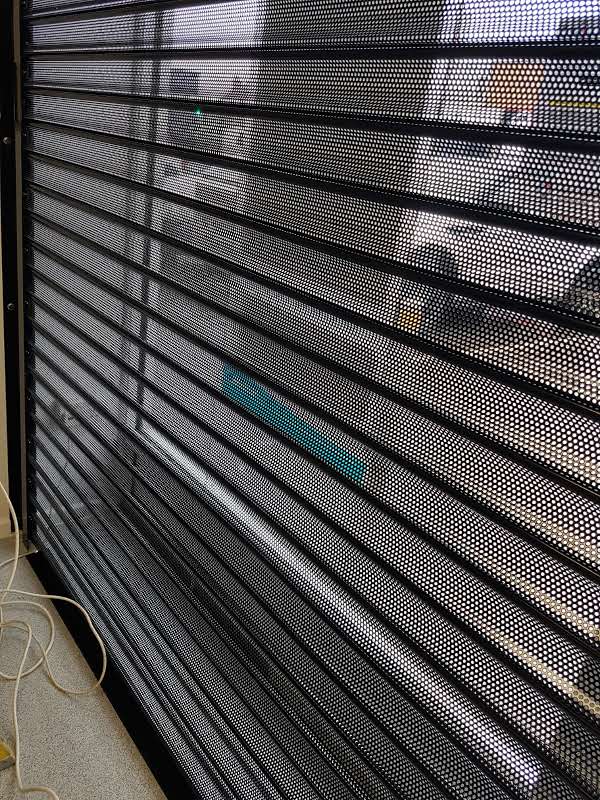

The Viewguard roller shutter is a robust security shutter constructed from 75mm curved galvanised steel laths, micro-perforated with a multitude of small round holes. This unique lath design creates a semi-transparent effect—allowing natural light and visibility while providing a strong physical barrier against intrusion and vandalism. When lit from behind, the shutter offers an attractive, illuminated effect, making it ideal for shopfronts and display areas.

Key Features and Benefits

• High Security: Galvanised steel construction provides a strong, tamper-resistant barrier for your premises.
• Perforated Lath Design: Micro-perforations (6mm round holes) allow for excellent airflow and partial visibility—ideal for premises needing ventilation or after-hours product display.

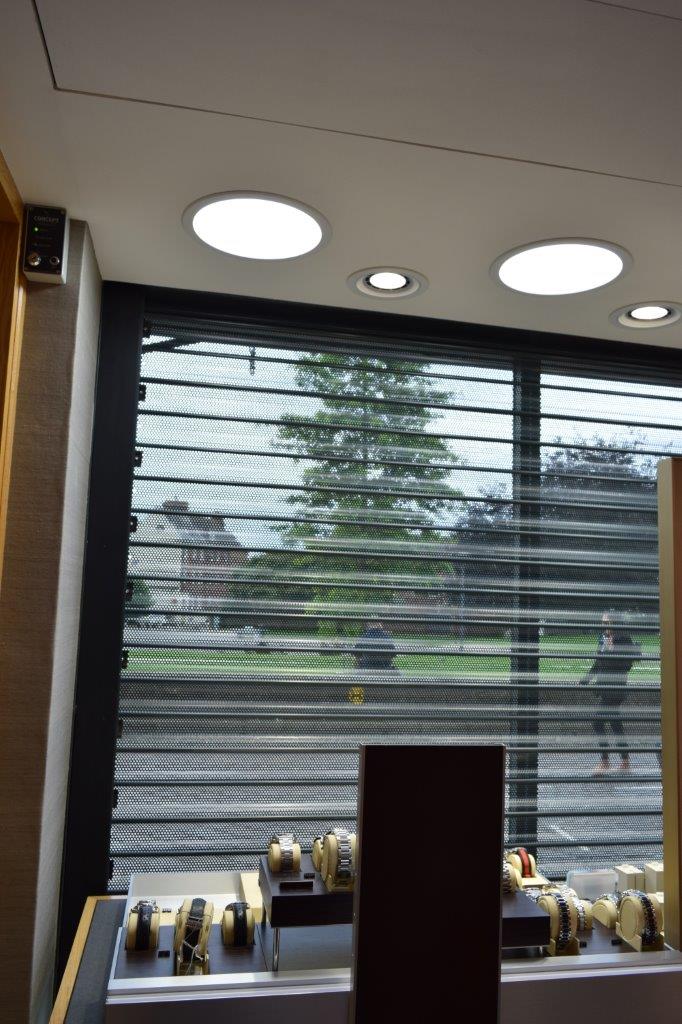

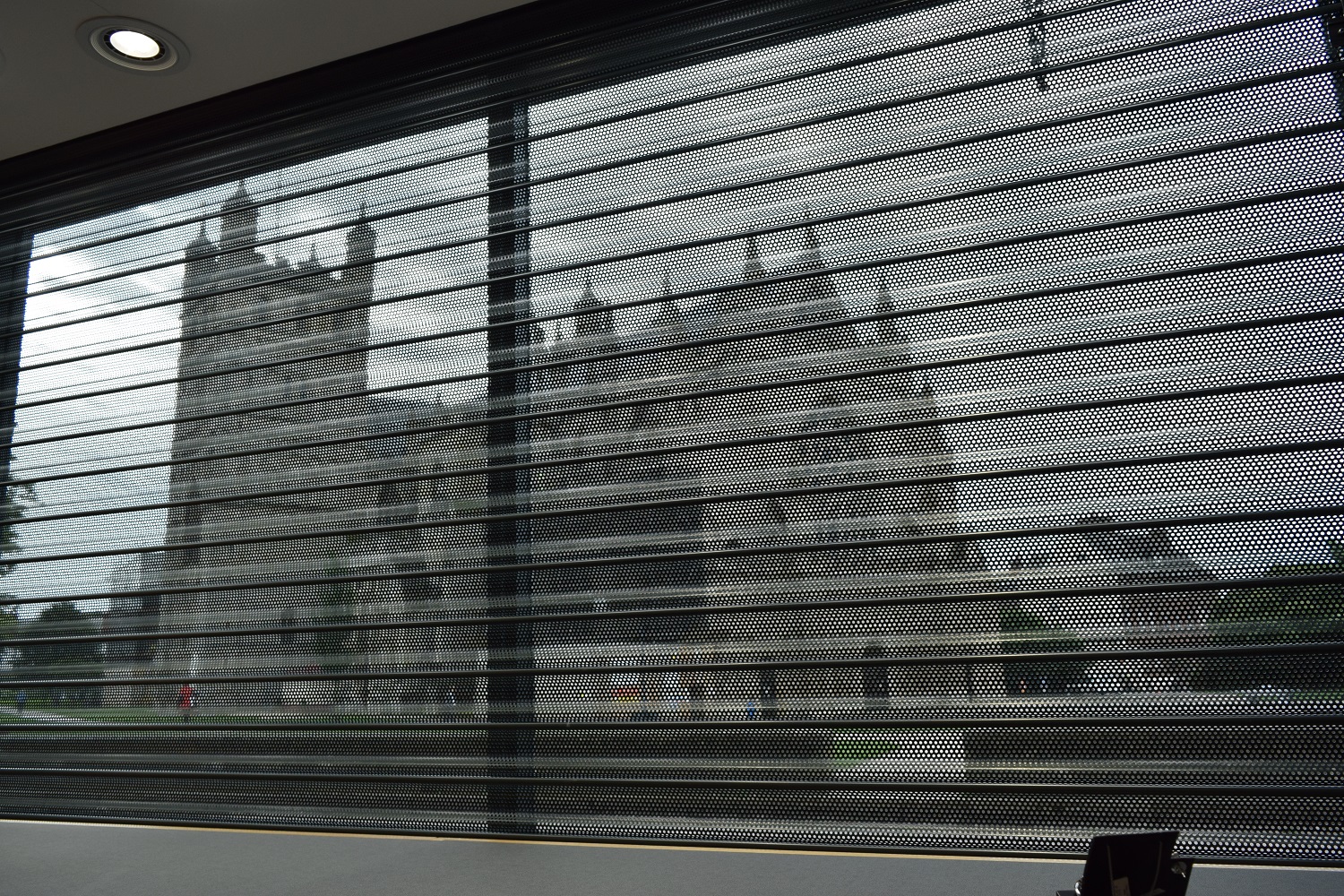

• Semi-Transparent Effect: The Viewguard’s unique design allows interior displays to remain visible, even when the shutter is closed and lit from inside.
• Versatile Operation: Available with manual push up/pull down, hand chain, or electric operation (including internal tubular motor with manual override).
• Customisable Finish: Choose from standard galvanised steel or polyester powder coated to any RAL colour for branding or architectural integration.
• Flexible Installation: Available in both face-fix and reveal-fix options to suit your building structure.
• Low Maintenance: Durable steel and simple mechanism ensure long-lasting, reliable performance with minimal upkeep.
• Certified Quality: Manufactured to ISO 9001:2015 standards and compliant with BS EN 13241:2003-1 for peace of mind.
• Multiple Locking Options: Central key lock, guide pin locks, or ground padlocking system for enhanced security.

Typical Specification

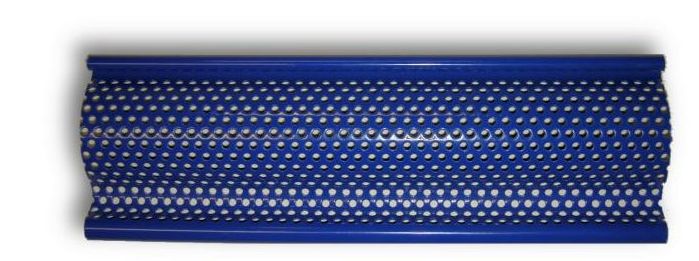

• Construction: 75mm curved galvanised steel lath, micro-perforated with 6mm holes
• Bottom Rail: Galvanised steel T- or L-section
• Guides: 10-gauge galvanised steel, 65mm–104mm x 33mm
• Operation: Manual (push up/pull down or chain) or electric (internal tubular motor with manual override and safety brake)
• Box Size:
  • Up to 2400mm opening: 305mm box
  • Up to 3600mm opening: 355mm box
  • Up to 4500mm opening: 405mm box
• Maximum Sizes:
  • Manual: up to 2500mm wide x 2500mm high
  • Electric: up to 6000mm wide x 4500mm high
• Finish: Galvanised steel as standard, or powder coated to any RAL colour
• Optional Canopy: Galvanised steel folded canopy box for roller mechanism protection

Applications: Where Can Viewguard Perforated Steel Roller Shutters Be Used?

The Viewguard perforated steel shutter is exceptionally versatile and suitable for a wide range of projects, including:

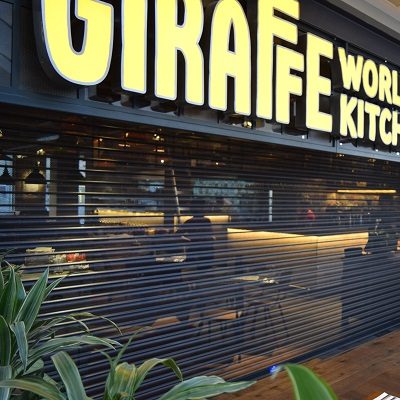

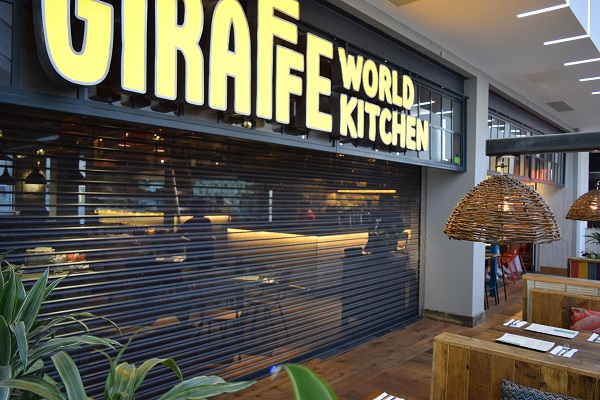

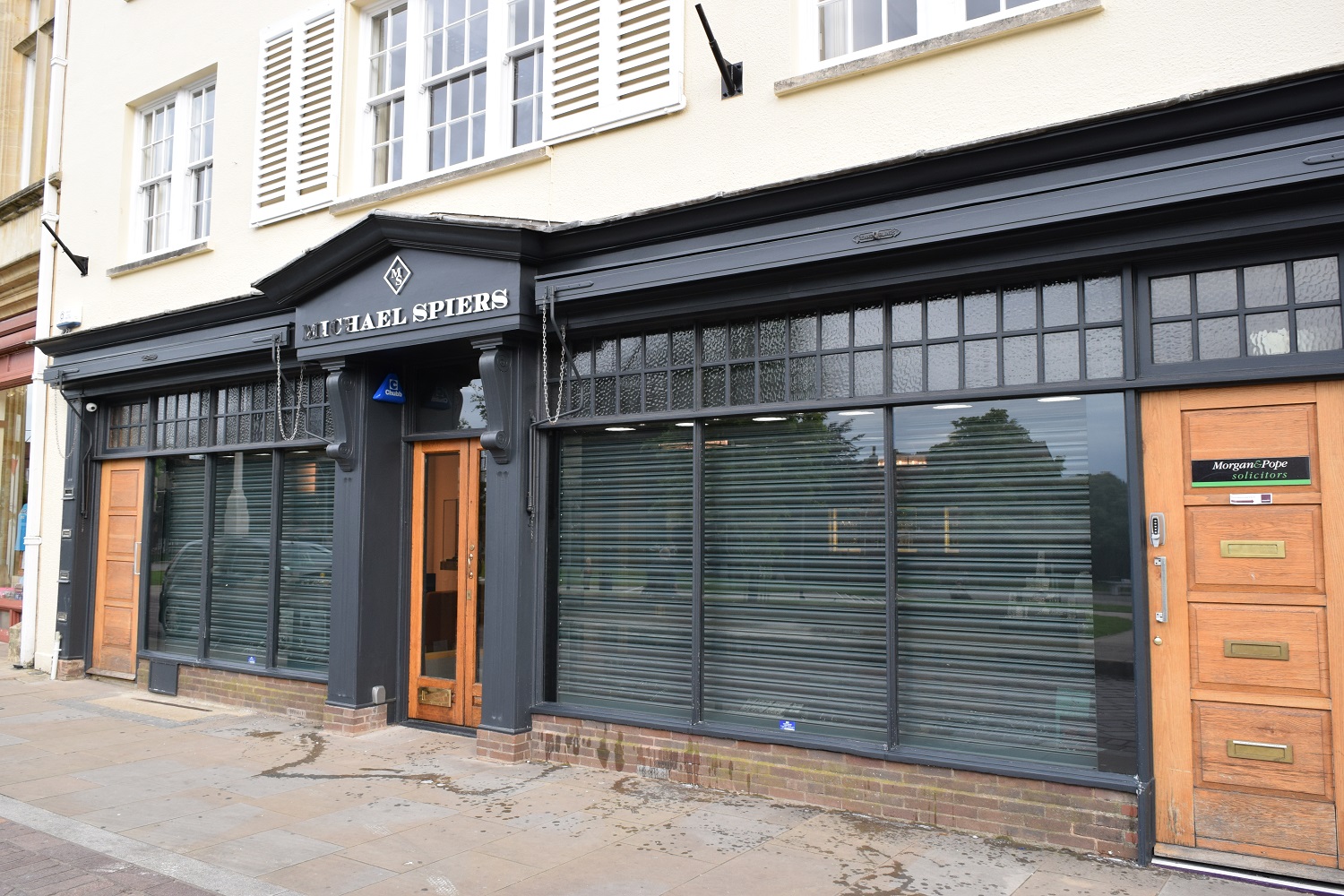

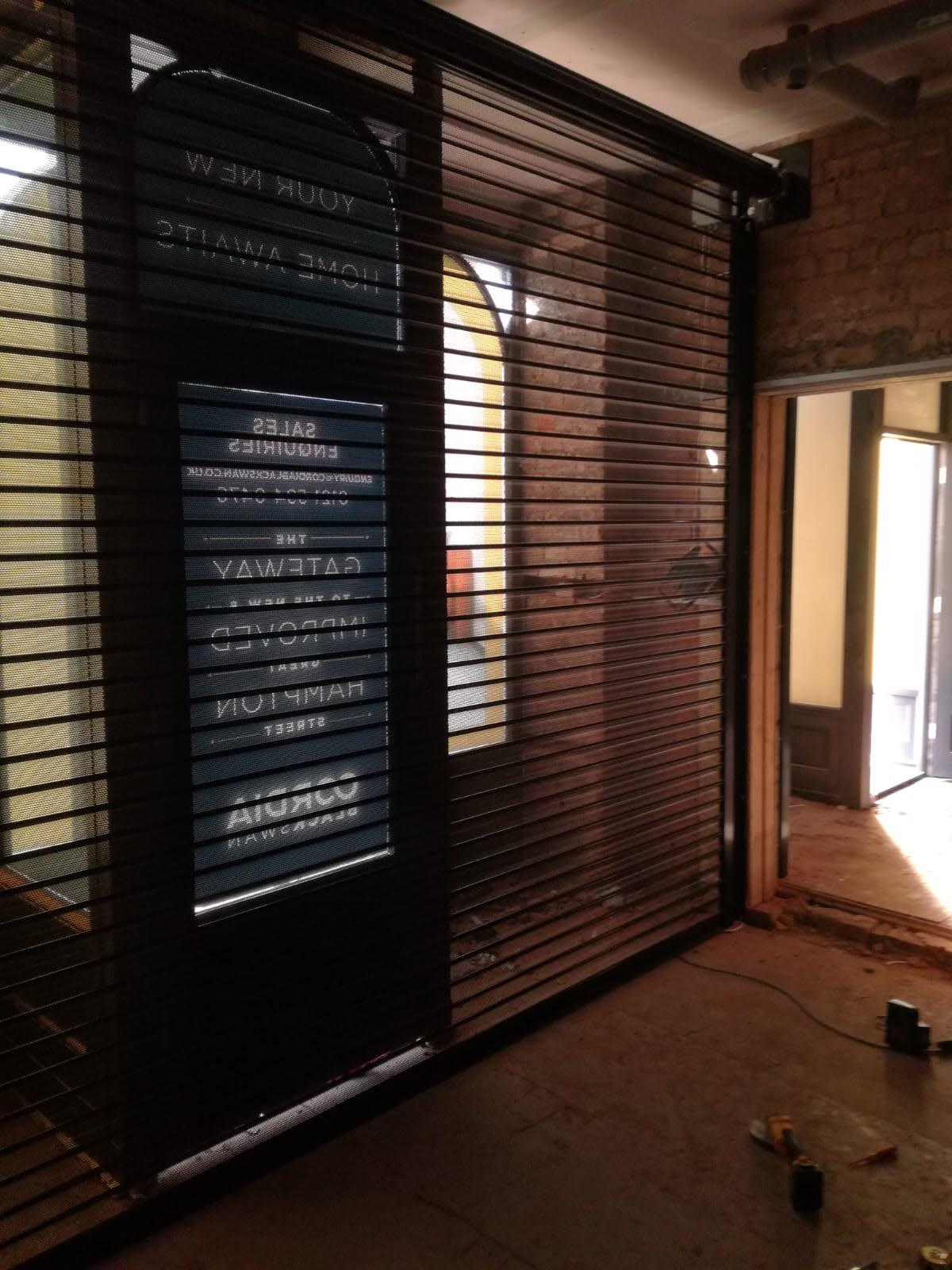

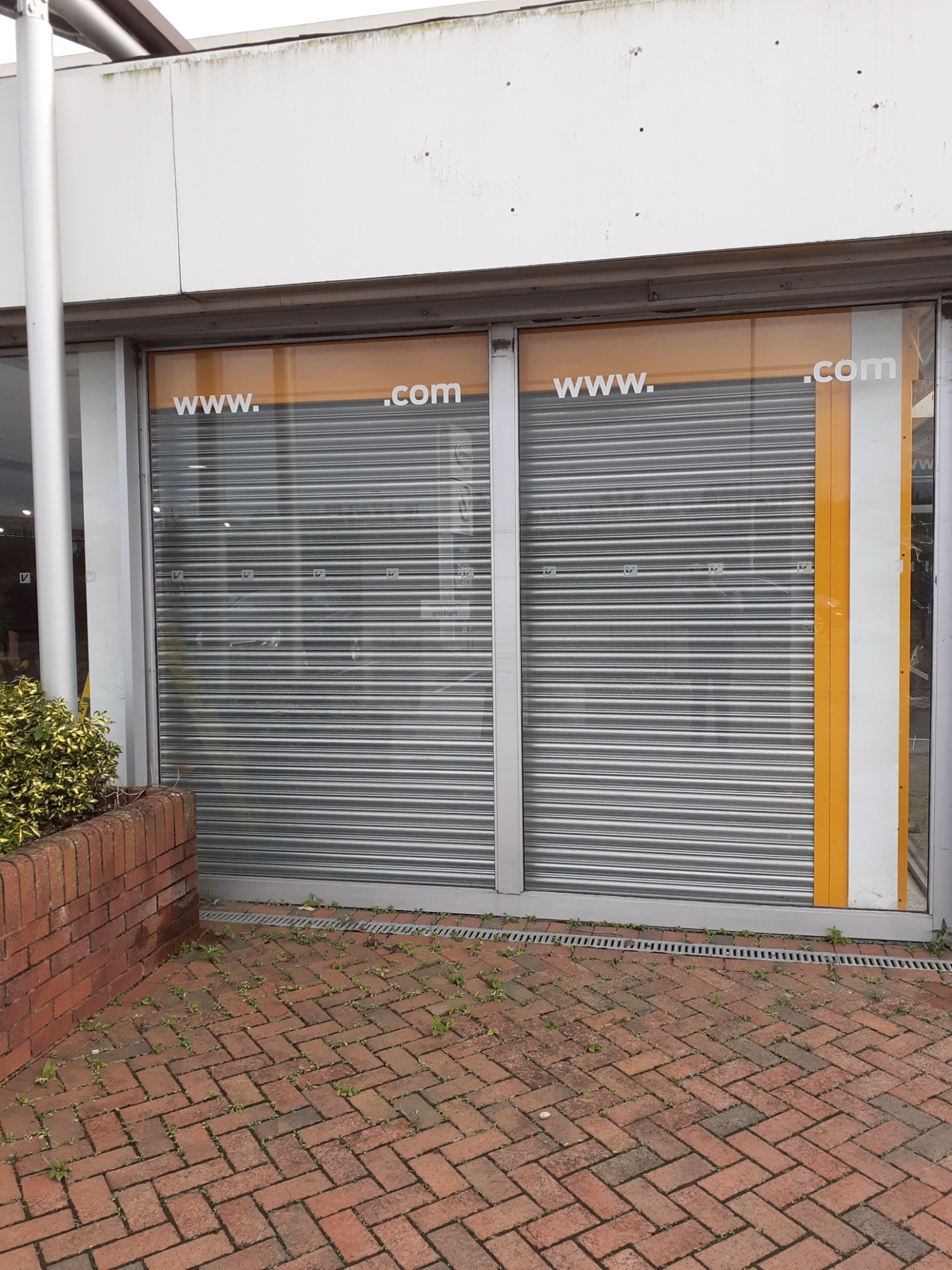

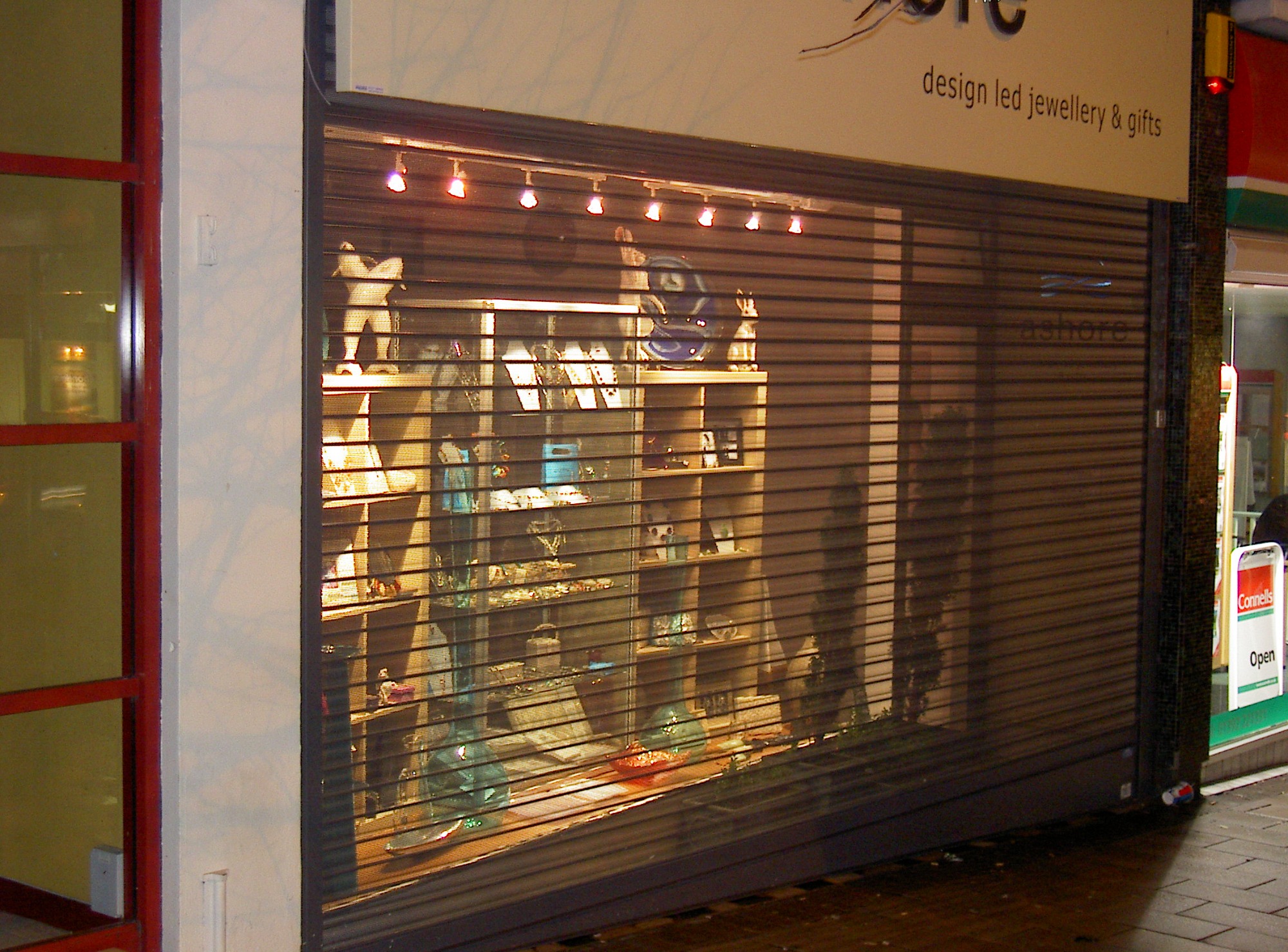

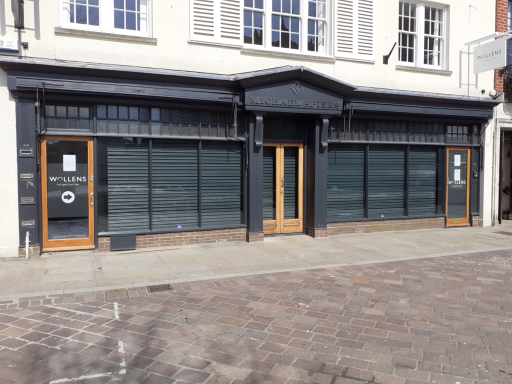

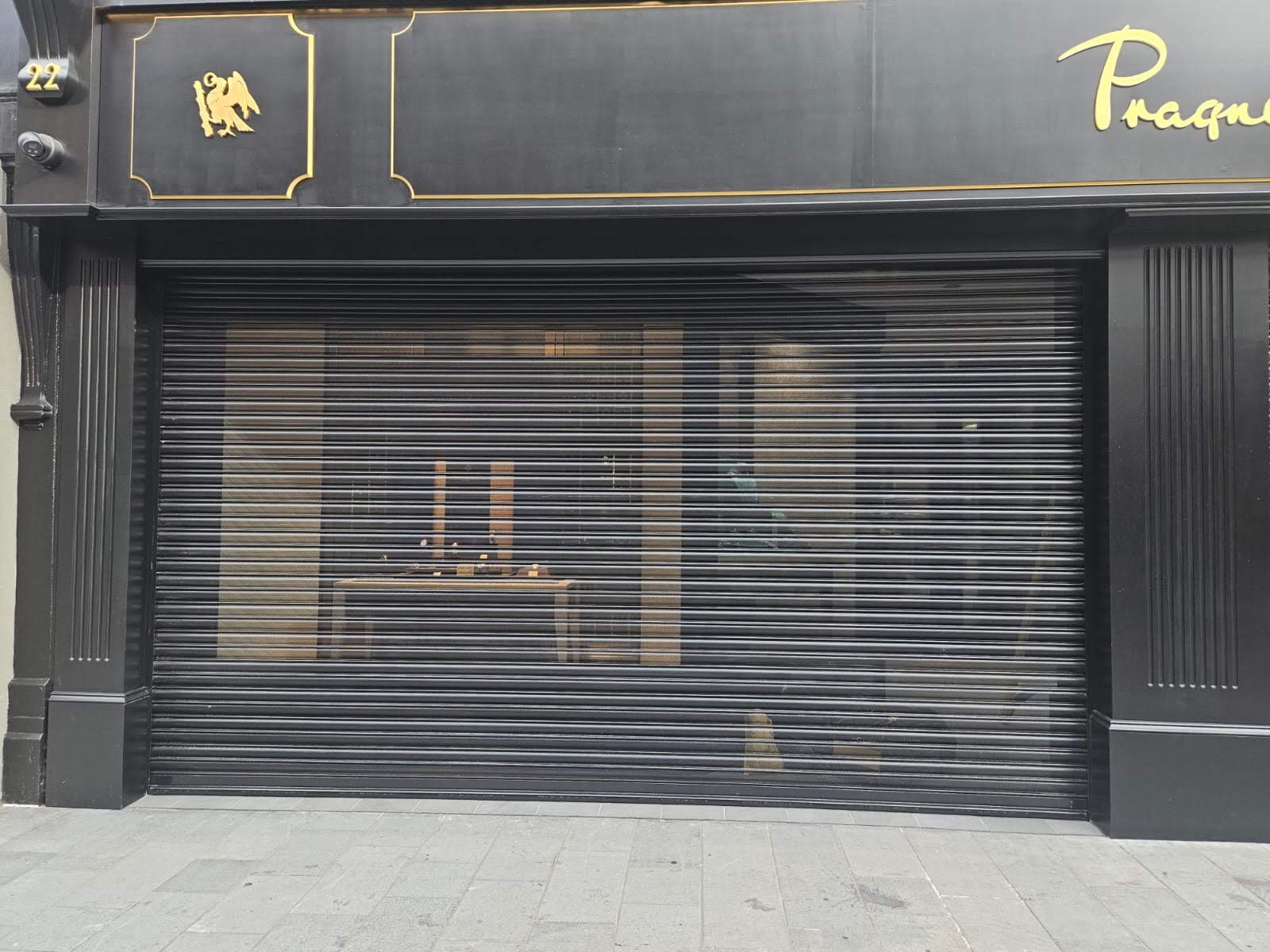

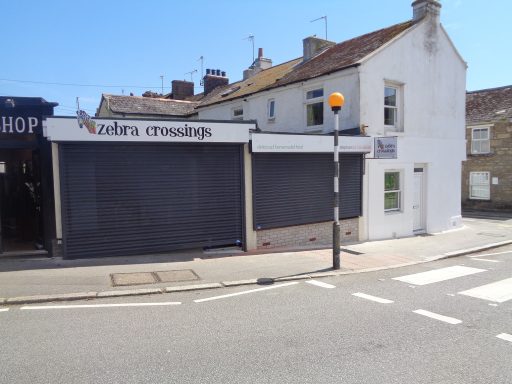

• Shopfronts and Retail Stores: Secure windows and entrances while allowing after-hours product displays to remain visible and attractive.
• Offices and School Buildings: Provide security for windows, doors, and reception areas, with added ventilation and light.
• Transport Hubs: Used in train stations, airports, and service stations for ticket counters, kiosks, and access control.

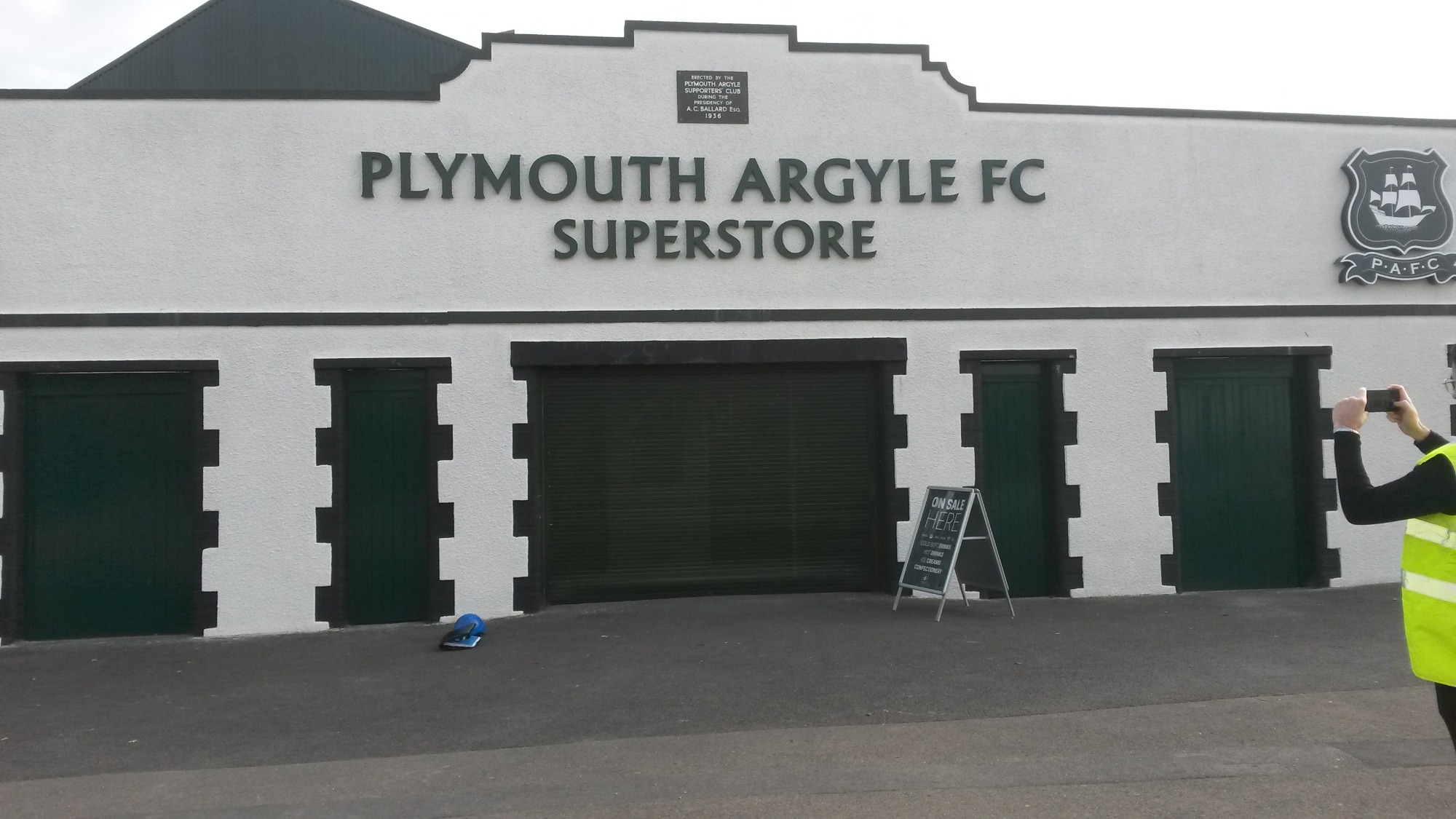

• Stadiums and Arenas: Secure kiosks, bars, and entrances while maintaining airflow and visibility.

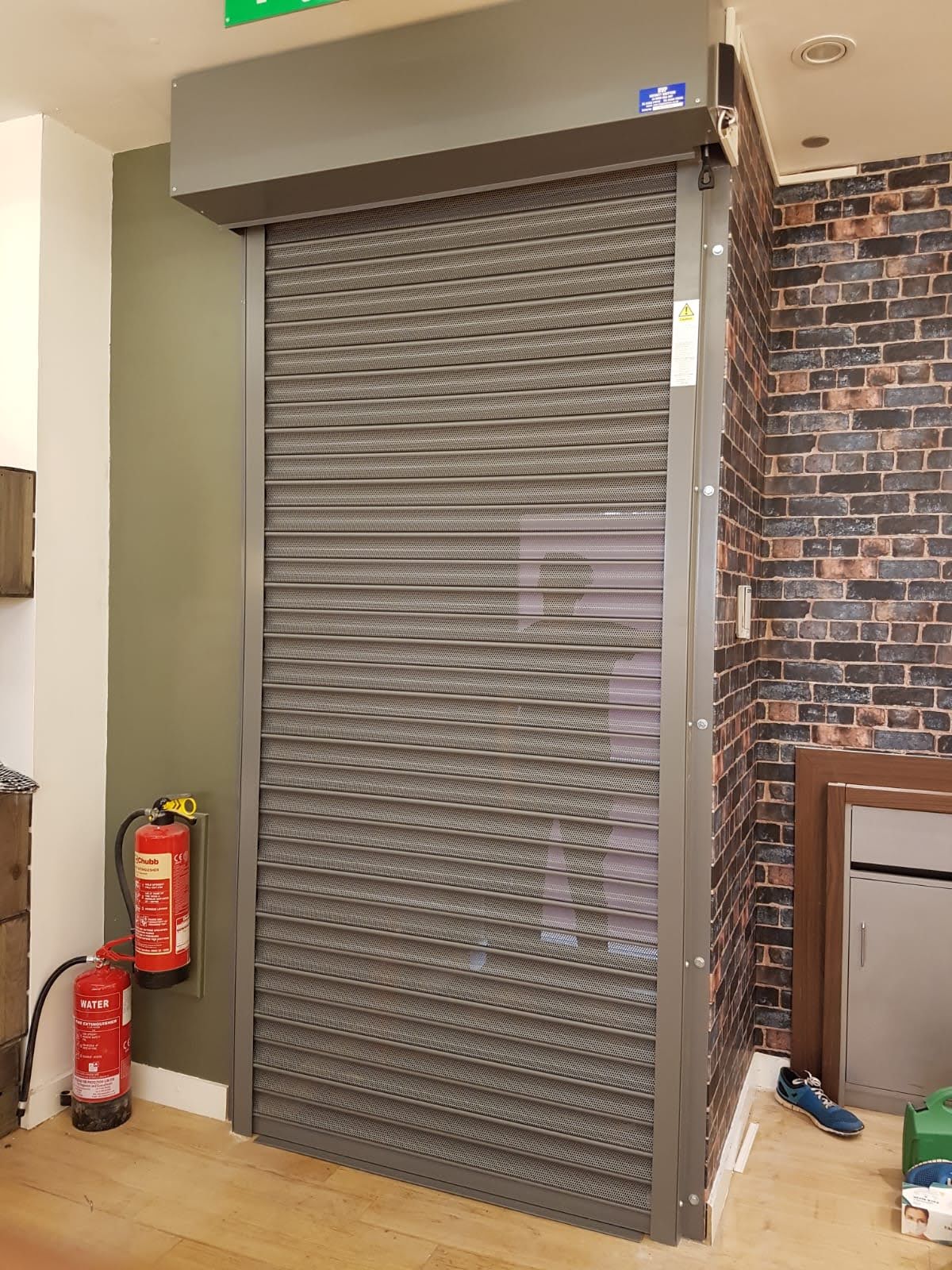

• Kiosks and Concessions: Perfect for securing small retail units in malls, leisure centres, and public spaces.
• Public Buildings: Suitable for council offices, libraries, and community centres needing both security and transparency.

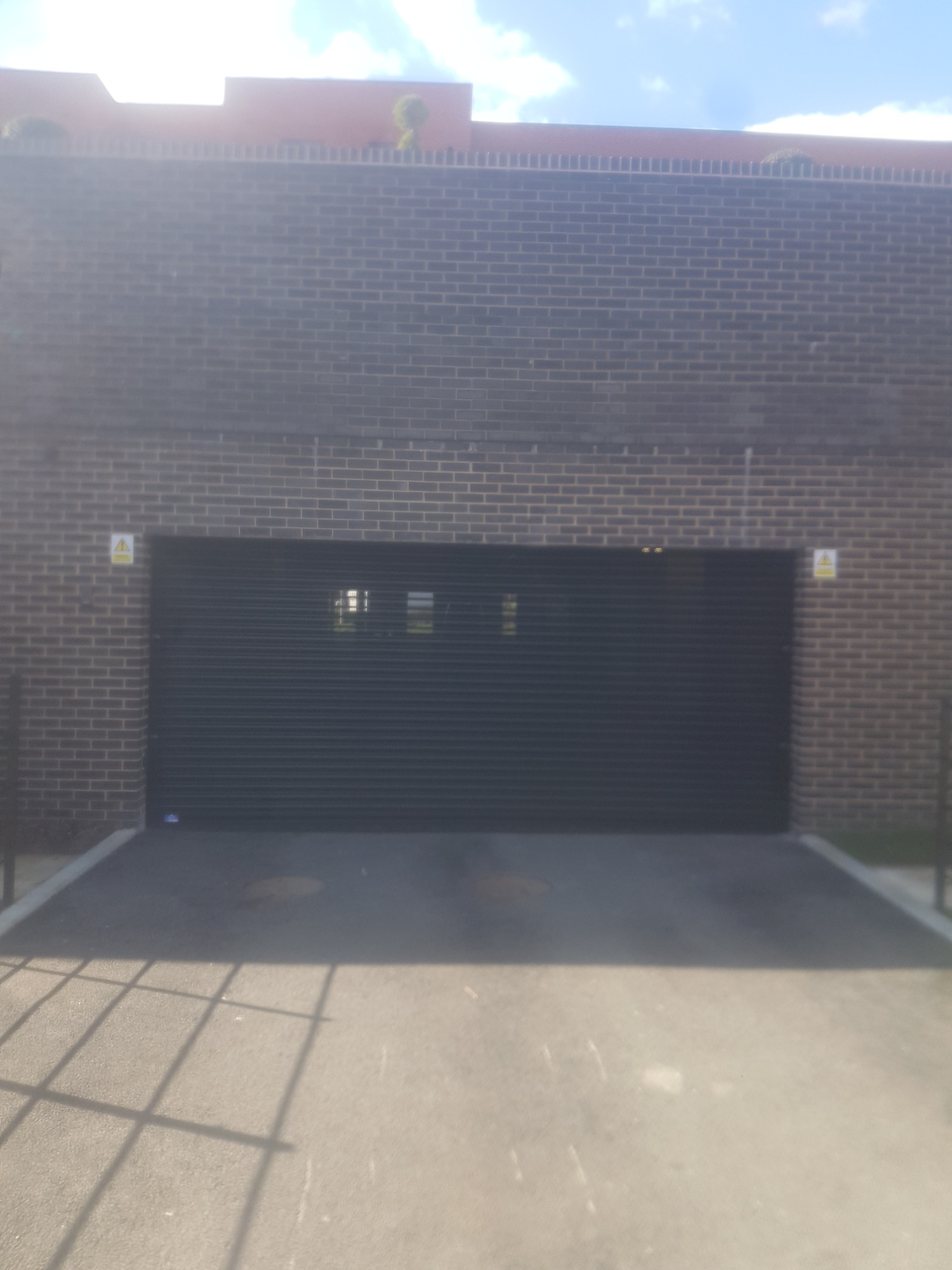

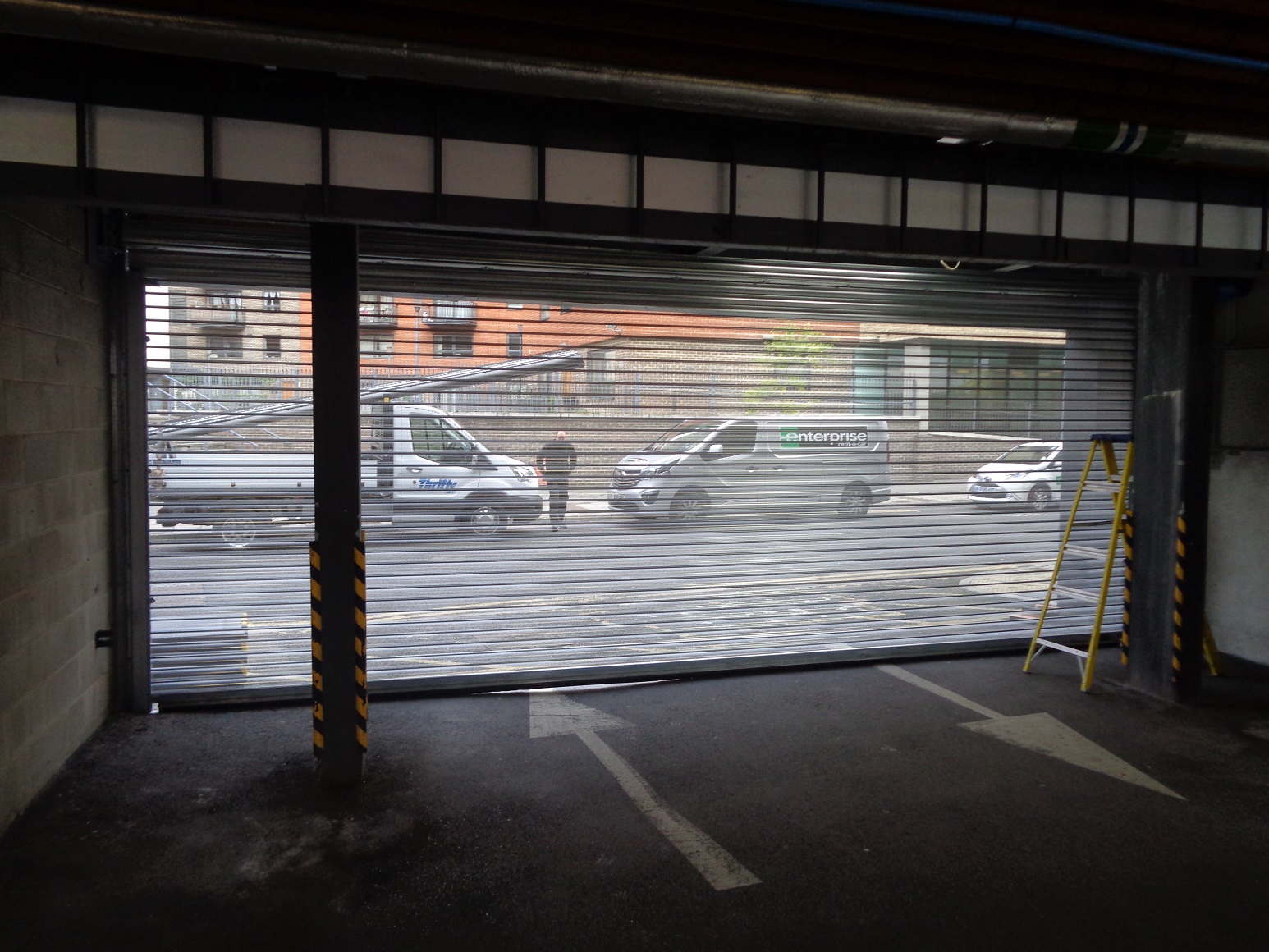

• Warehouses and Industrial Units: Maintain ventilation and security for loading bays, doors, and windows.

Why Choose HVP Security Shutters for Viewguard Perforated Steel Shutters?

With over 34 years’ experience, HVP Security Shutters is a trusted UK manufacturer and installer of steel security shutters. Our Viewguard model is a favourite for clients who want robust security with the added benefits of light, air, and visibility.

• Expert Advice: Our team will help you specify the right shutter, size, and operation for your needs.
• Custom Manufacturing: Every shutter is made to measure for a perfect fit and finish.
• Professional Installation: All work carried out by fully qualified, DHF-trained engineers.
• Comprehensive Documentation: Technical drawings, risk assessments, and CE marking provided as standard.
• Nationwide Coverage: Supply and installation across the UK, with 24/7 emergency repair support.
• ISO 9001:2015 Certified: Assured quality management for total peace of mind.

Recent Projects

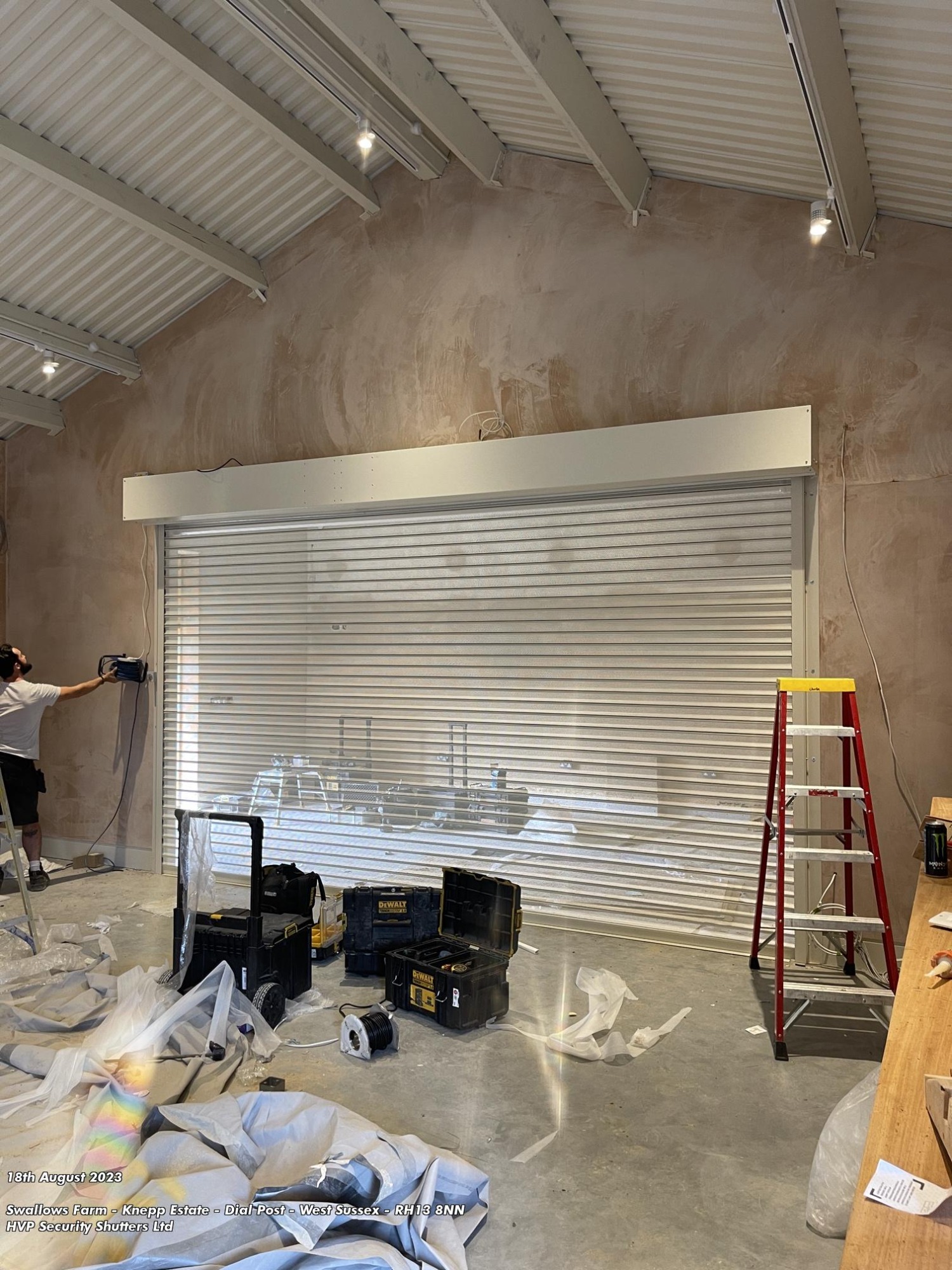

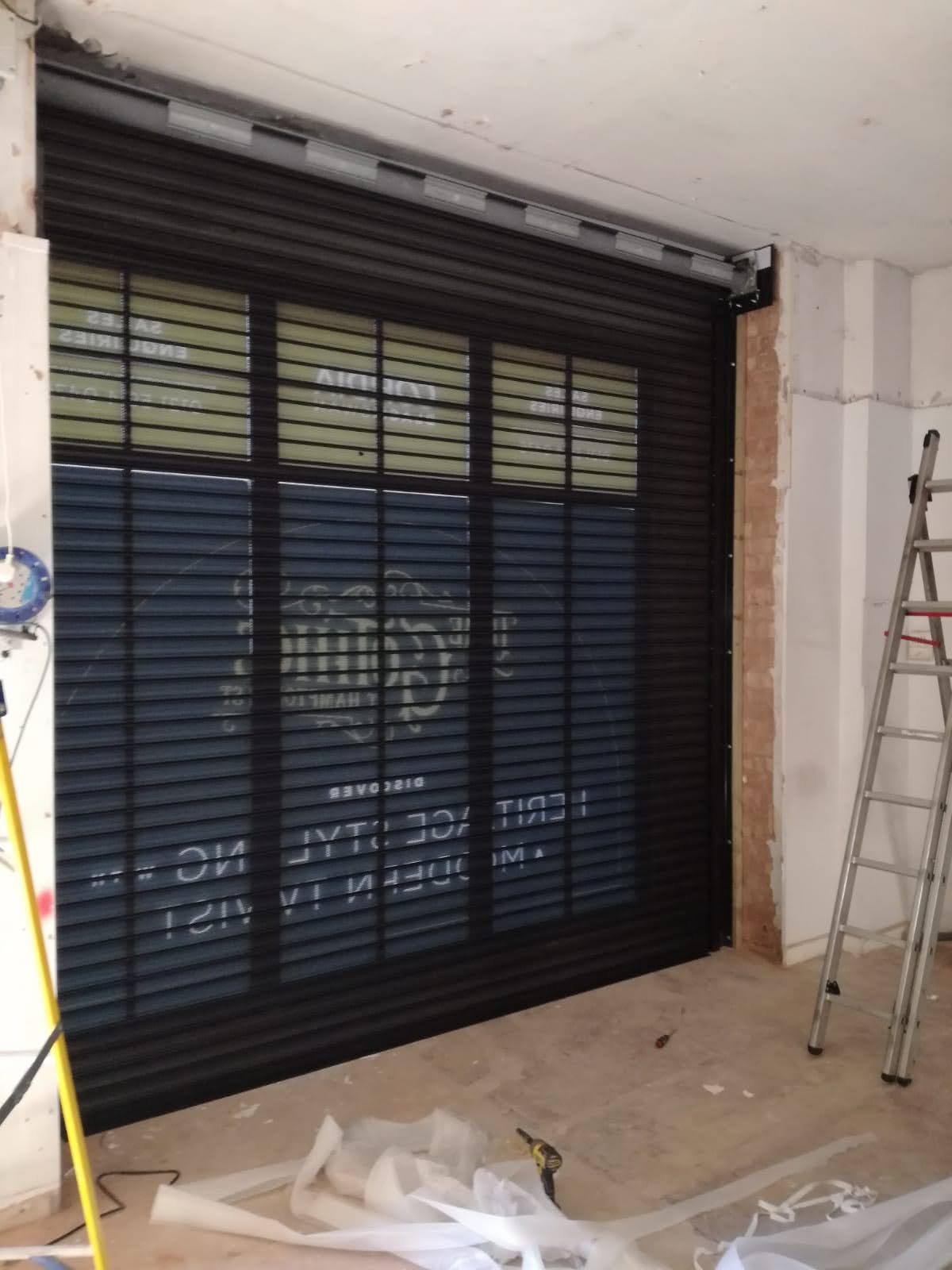

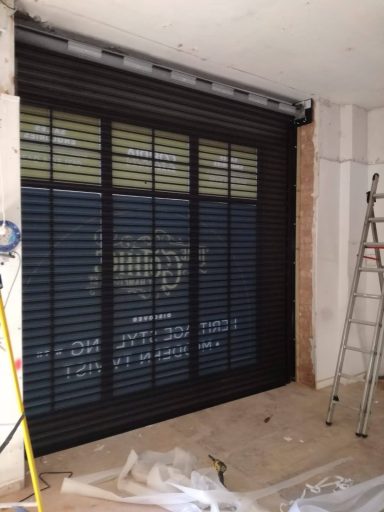

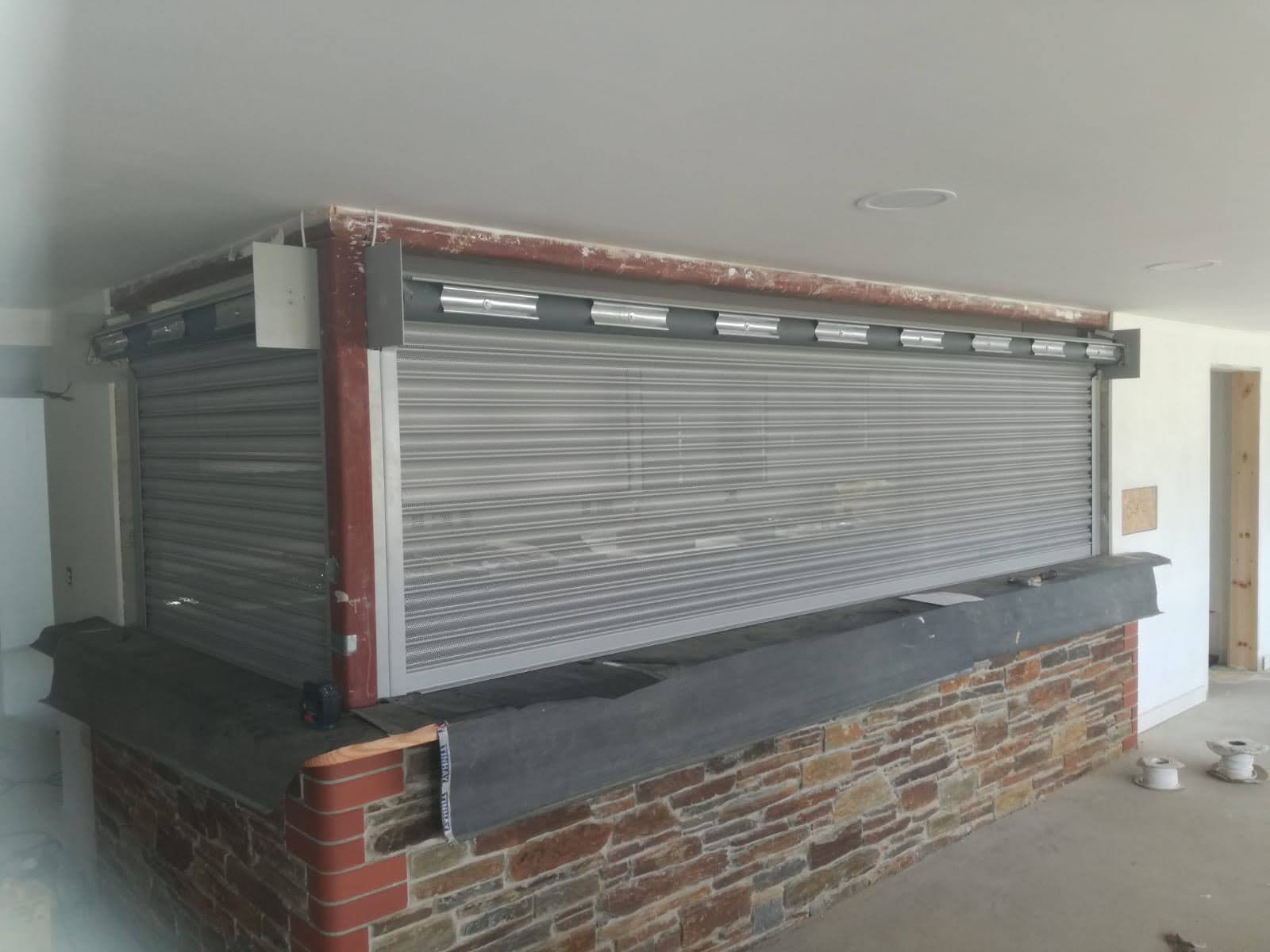

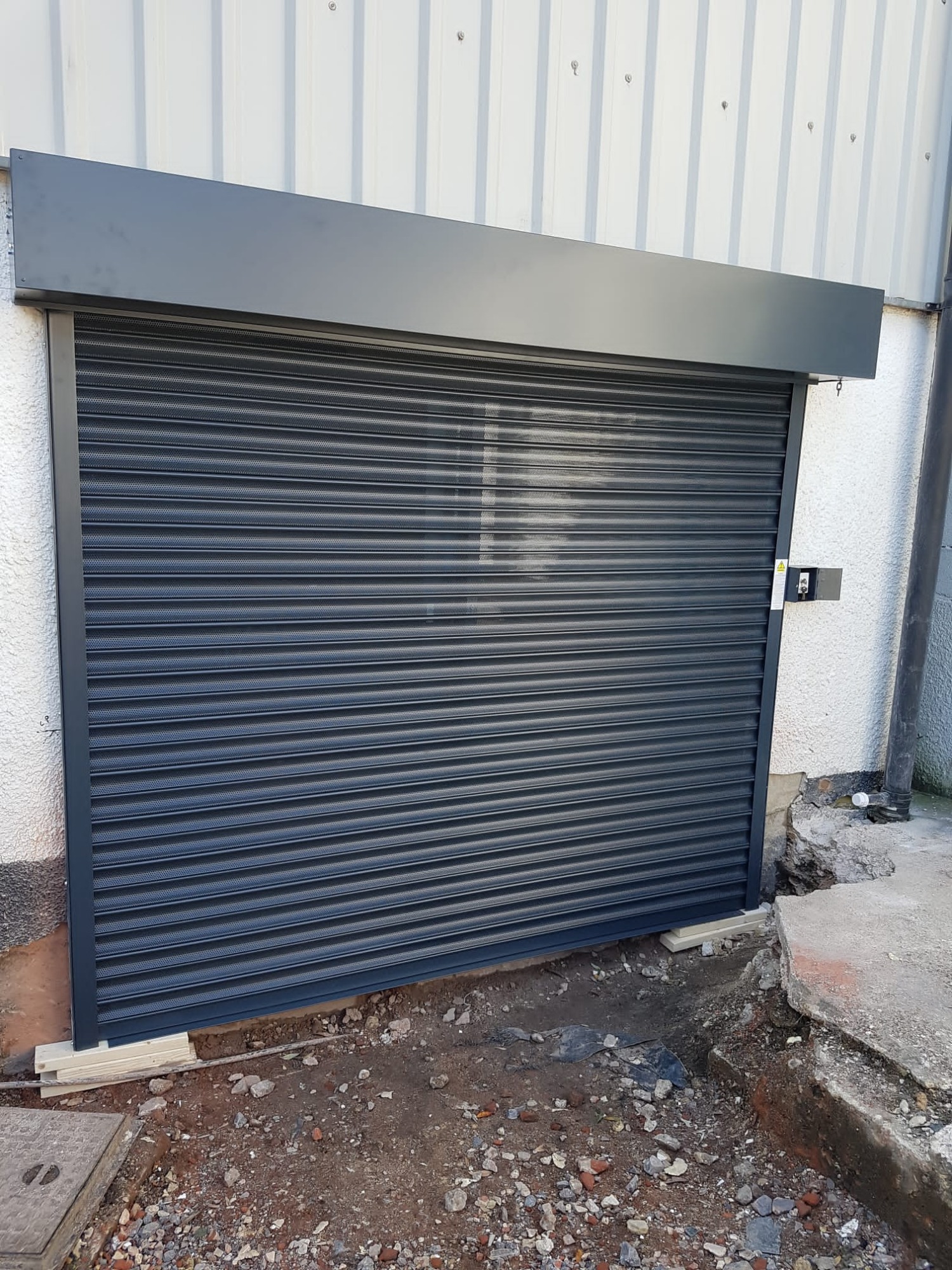

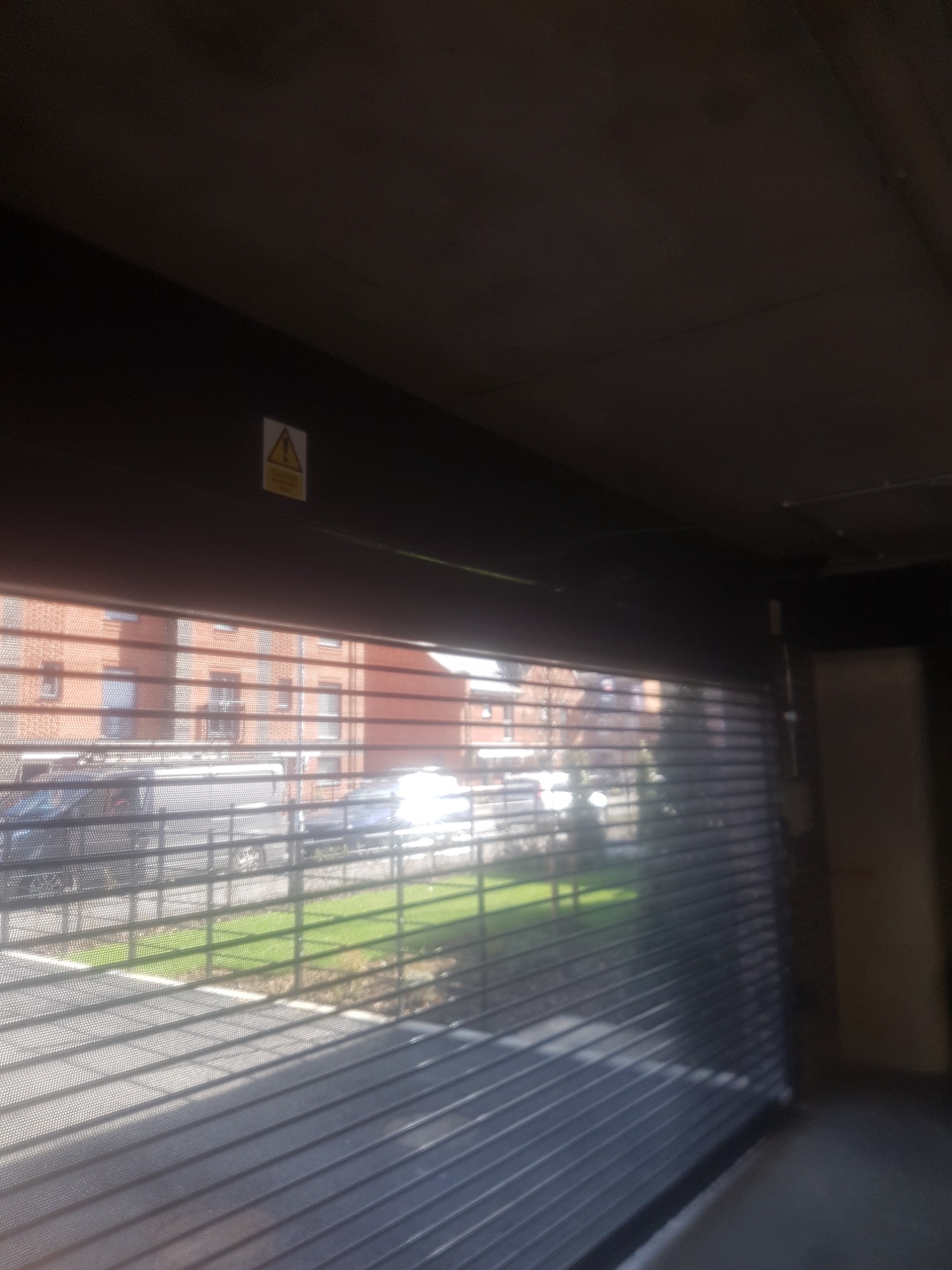

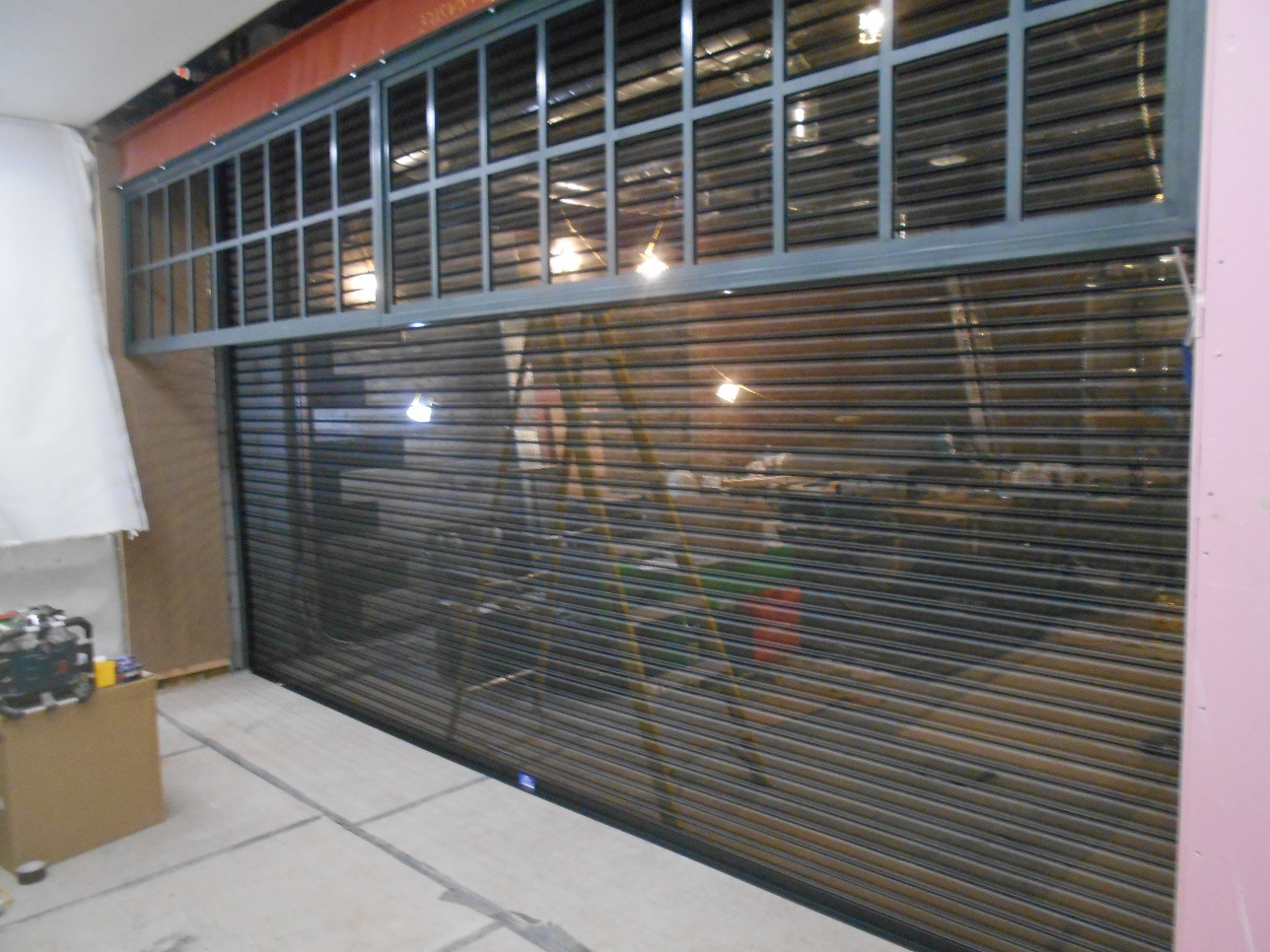

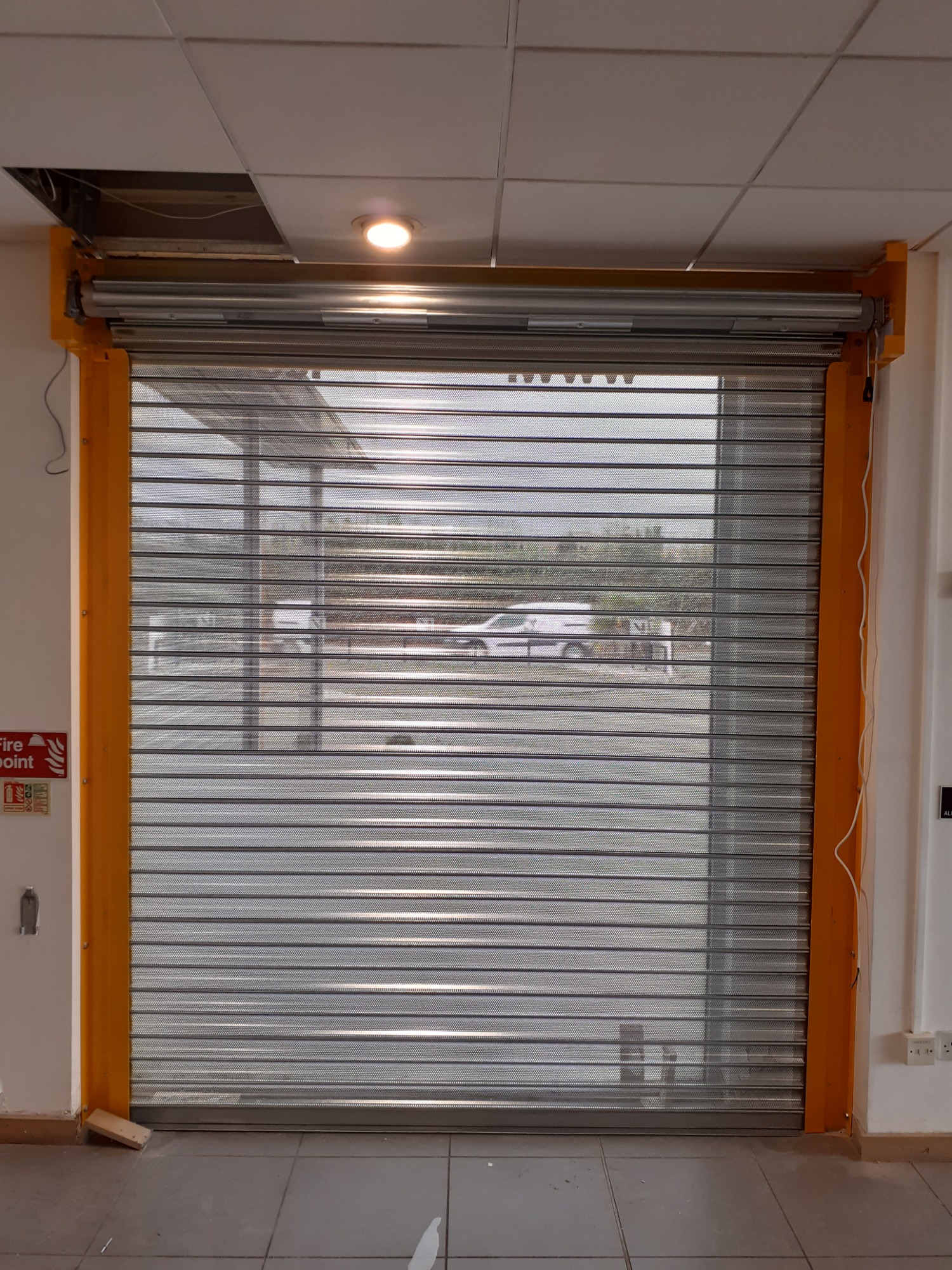

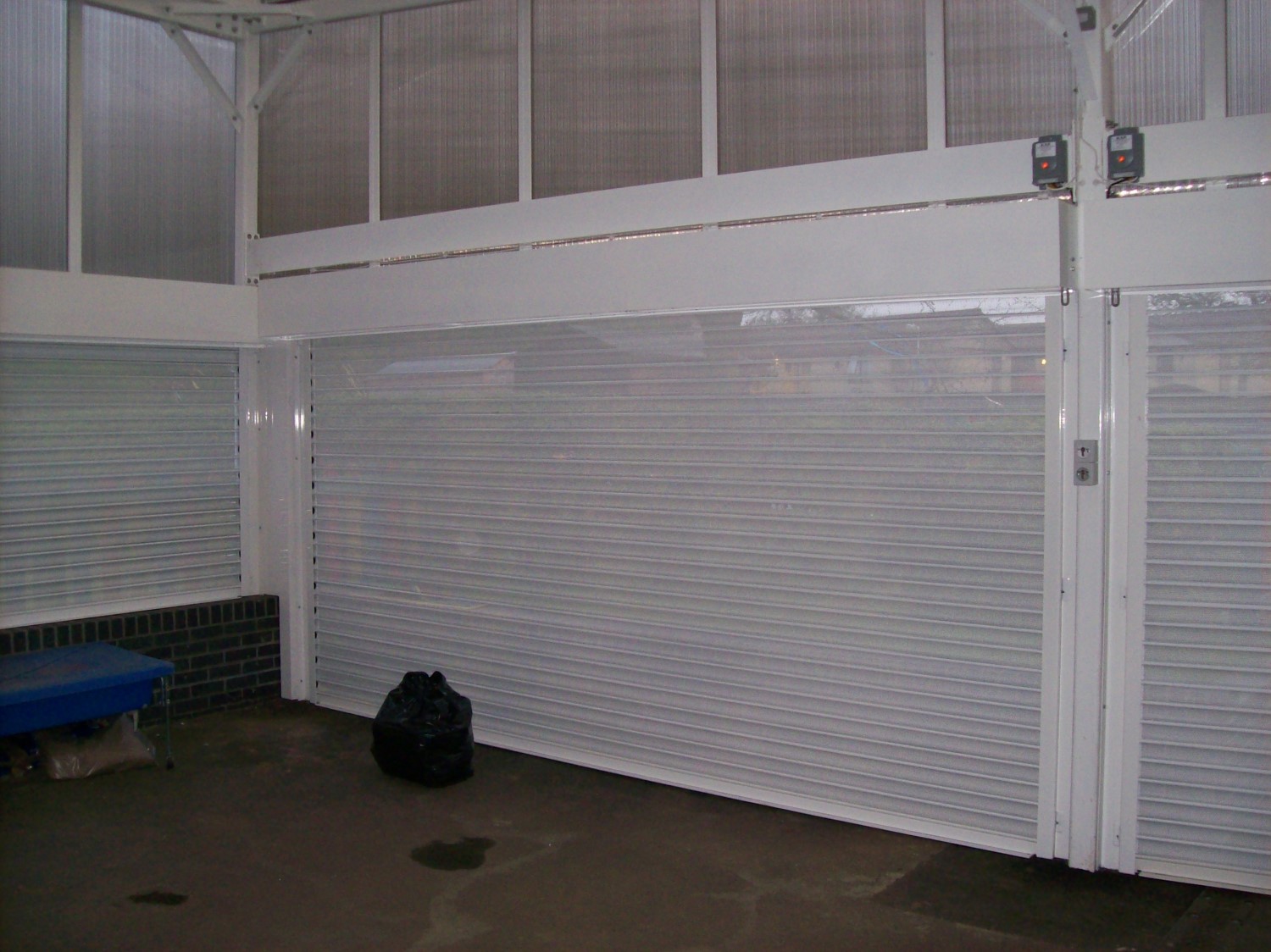

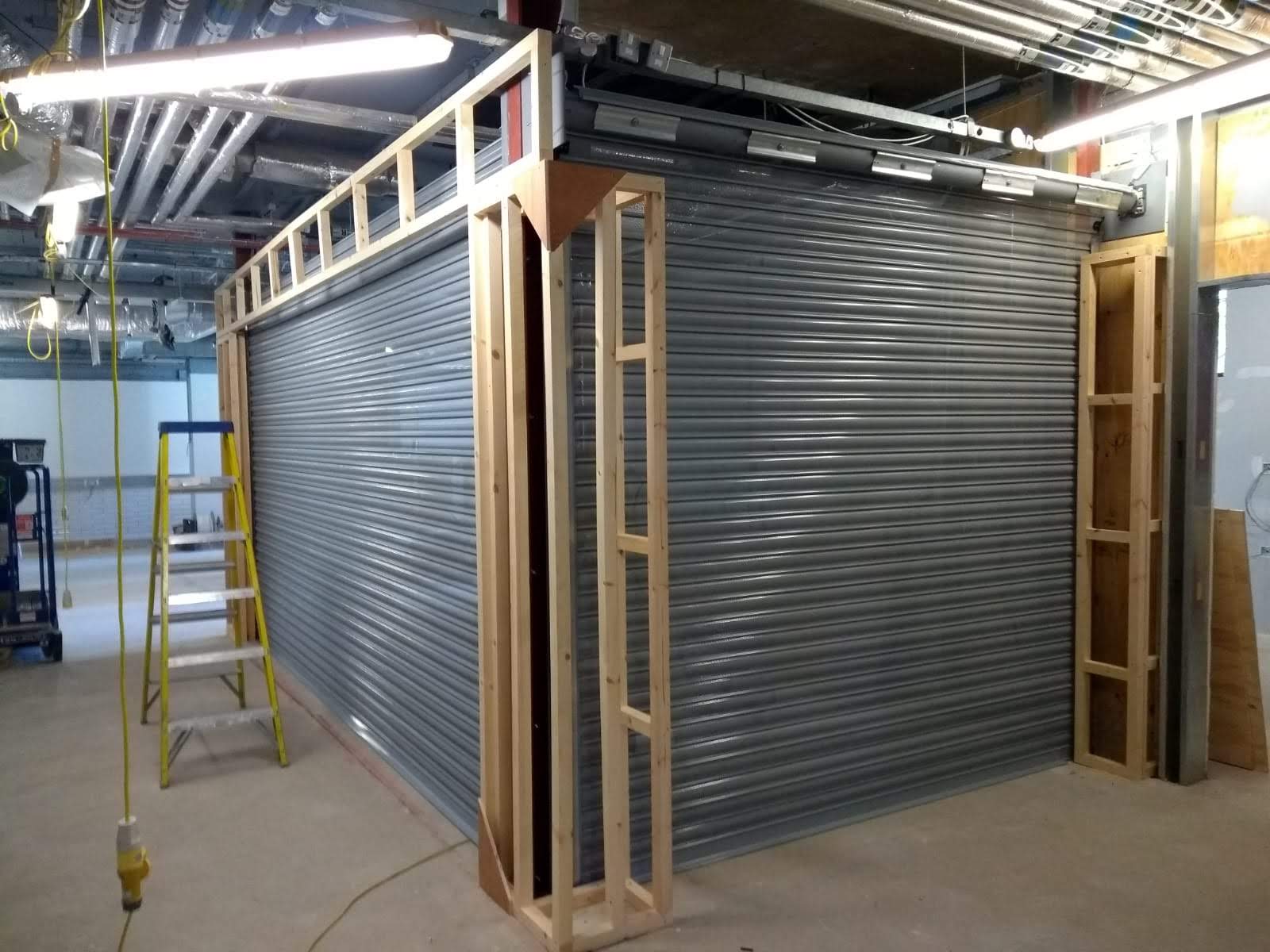

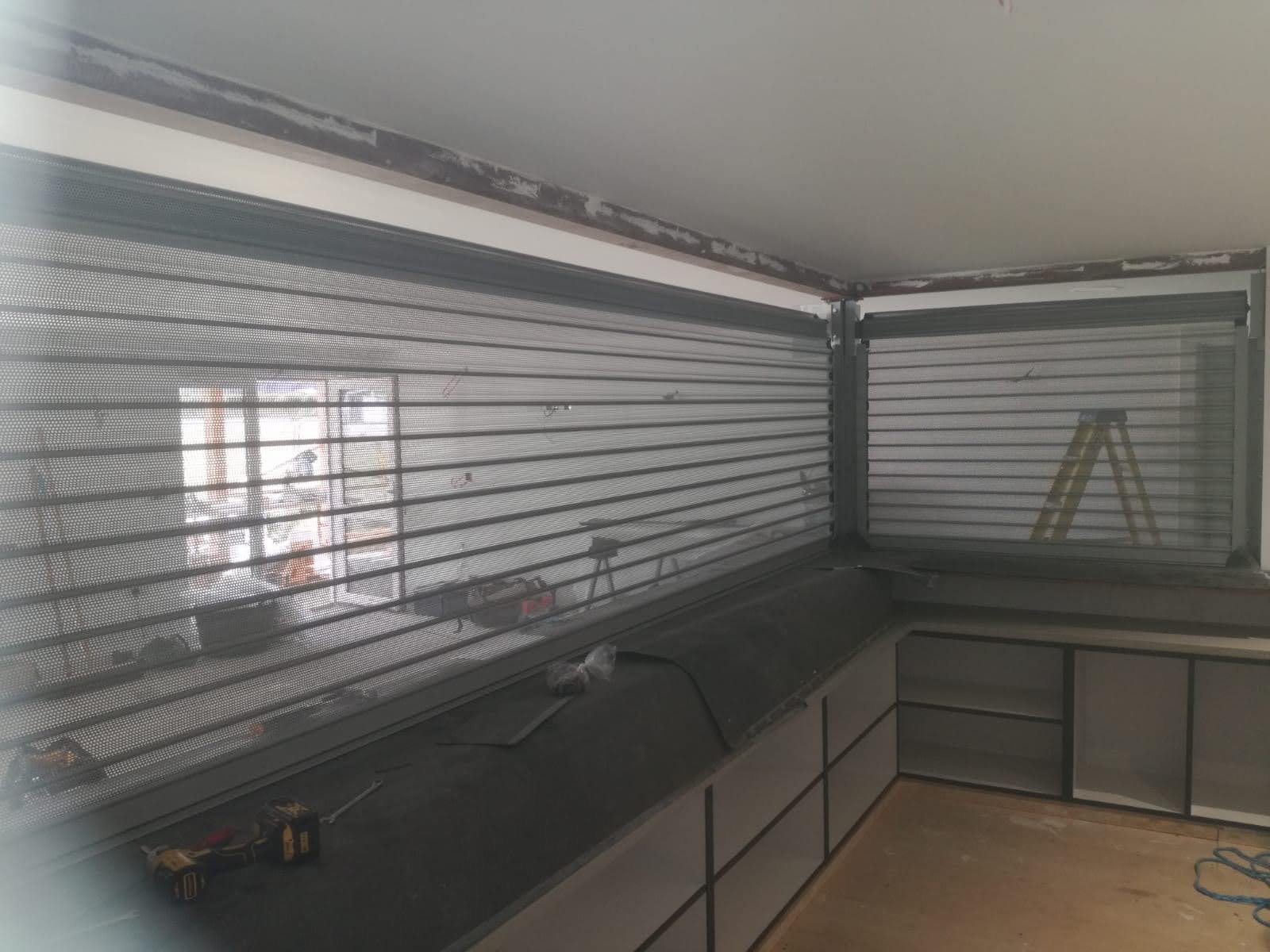

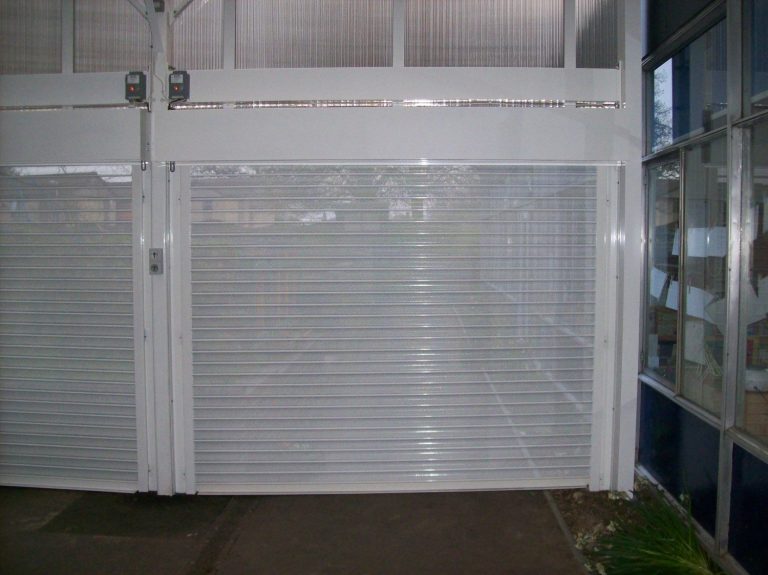

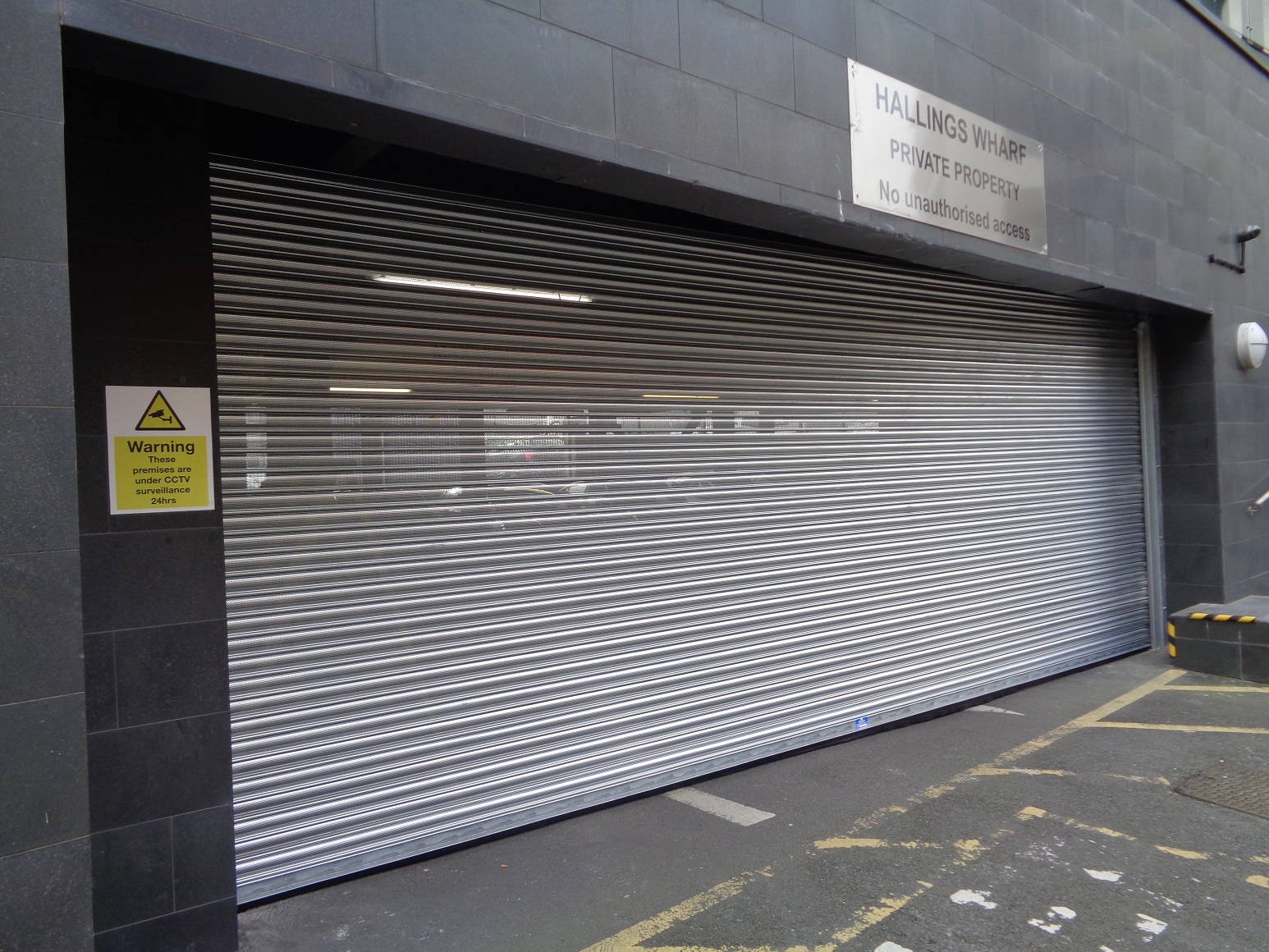

Viewguard perforated steel roller shutters have been installed on projects ranging from high street shops and transport hubs to schools, stadiums, and public buildings. Their combination of security, ventilation, and display capability makes them a top choice for architects, facilities managers, and property owners.

Request a Free Quote or Site Survey

Looking for a security shutter that offers both protection and visibility? Contact HVP Security Shutters today for a free site survey and competitive quotation on Viewguard perforated steel roller shutters.
