A perfectly fitted roller shutter offers optimal security, smooth operation, and a clean aesthetic. Conversely, incorrect measurements can lead to a host of problems:

• Compromised Security: Gaps around the shutter can be vulnerable points.
• Poor Performance: The shutter may jam, operate unevenly, or make excessive noise.
• Installation Challenges: Difficult or impossible fitting, leading to increased labor costs.
• Aesthetic Issues: An ill-fitting shutter looks unprofessional and detracts from your property.
• Costly Errors: At best, minor adjustments; at worst, a completely new bespoke shutter needed.

DIY Measurement Guide: The Essential Basics

While a professional survey is always recommended, understanding the key measurements is helpful for initial planning and discussions. Always measure in millimetres for precision.

1. Measure the Width (Clear Opening):

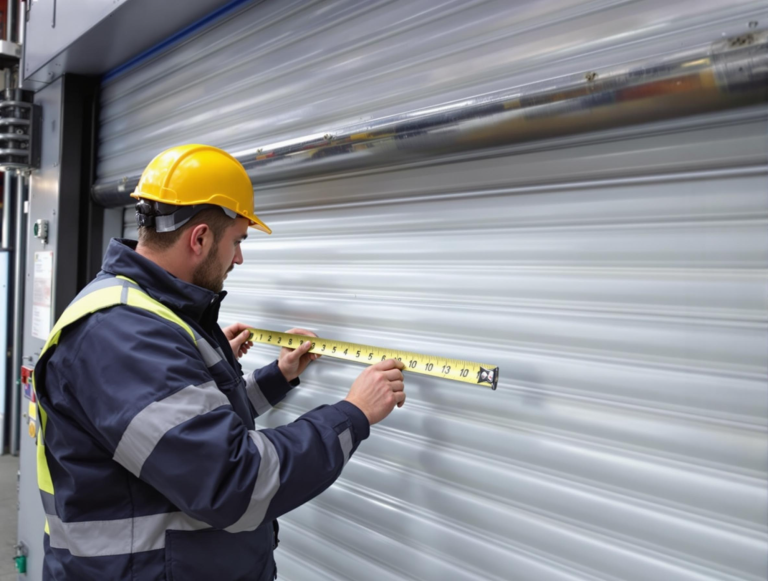

   • Measure the horizontal distance across the opening at three points: top, middle, and bottom.
   • Record the smallest of these three measurements. This accounts for any irregularities in your opening.
   • Note: If you are planning a "face fix" (shutter mounted outside the opening), you'll need to add extra width for the guide rails.
2. Measure the Height (Clear Opening):
   • Measure the vertical distance from the floor/cill to the underside of the lintel (or ceiling) at three points: left, middle, and right.
   • Record the smallest of these three measurements. This ensures the shutter won't foul on any low points.
   • Note: If you are planning a "face fix" (shutter mounted outside the opening), you'll need to add extra height for the shutter box.
3. Crucial: Measure Headroom (Space Above the Opening):
   • This is the vertical space available above the top of your opening to the nearest obstruction (e.g., ceiling, beam, pipework).
   • Why it's vital: This is where the shutter box (which houses the rolled-up shutter curtain and barrel) and the head plates (the fixing brackets for the barrel) will sit. Insufficient headroom means the shutter cannot roll up fully, or the box may protrude into your opening.
   • The headroom requirements vary significantly based on the shutter type, slat size, and overall height of the shutter. For example, a compact domestic garage roller door might need around 205-300mm, whereas a large industrial roller door could require 450mm or more.
   • Always measure this space accurately, as it often dictates the feasibility of certain shutter types.
4. Measure Side Room (Guide Rail Space):
   • This is the flat, clear space available on either side of your opening, from the edge of the opening to the nearest wall or obstruction (e.g., drainpipes, electrical boxes).
   • Why it's vital: The guide rails (side channels) that the shutter curtain runs in need a clean, flat surface to be securely fixed. Typical requirements range from 65mm for lighter shutters to over 100mm for heavy-duty industrial models.
5. Consider Mounting Type:
   • Face Fix: Shutter is mounted on the wall outside the opening. Maximizes clear opening space. Requires sufficient headroom and side room.
   • Reveal Fix: Shutter is mounted within the opening. Provides a neater look but reduces the clear opening width and height slightly. Requires sufficient depth within the reveal.

When to Call a Professional: The Benefits of a Site Survey

While DIY measurements give you a good starting point, a professional roller shutter survey conducted by experienced engineers is invaluable and often essential for a perfect outcome.

1. Structural Assessment & Fixing Points:
   • A qualified shutter engineer will assess the integrity of the surrounding structure (brickwork, lintels, steelwork) to ensure it can safely support the weight of the shutter and withstand operational forces, especially crucial for large industrial roller doors. They can identify the best and safest fixing points.
2. Precision & Irregularities:
   • Engineers use specialist laser measurement tools for unparalleled accuracy. They are trained to spot subtle irregularities (e.g., sloping floors, bowed lintels, uneven walls) that a standard tape measure might miss, ensuring the bespoke roller shutter is manufactured to compensate perfectly.
3. Choosing the Correct Shutter for the Opening:
   • Beyond just size, a professional can advise on the correct shutter type (material, motor, security level, wind resistance, fire rating) based on your property's specific needs, expected usage, building regulations, and environmental factors. They ensure the shutter is not just fitted, but the right shutter for the job.
4. Identifying Hidden Obstacles & Requirements:
   • They can spot potential conflicts with existing pipework, electrical conduits, alarm sensors, or lighting fixtures that could interfere with installation or operation. They will also identify necessary electrical requirements for electric roller shutters (e.g., needing a three-phase power supply for heavy-duty units).
5. Liability & Warranty:
   • Having a professional survey and installation helps ensure compliance with safety standards and often validates the manufacturer's warranty, protecting your investment.

For an accurate, compliant, and perfectly fitted roller shutter, a professional site survey by HVP Security Shutters is the smart choice. Don't risk costly errors – let our experts ensure your shutter installation is right the first time.
